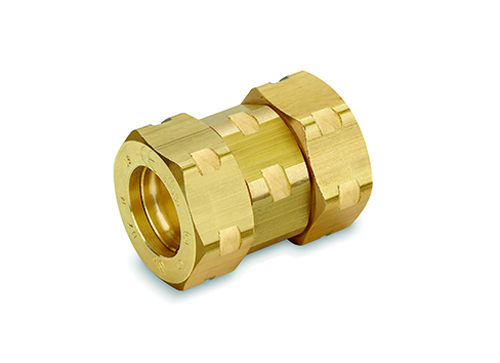

Supplies Depot: Gastite XR3CPL-8 1/2 inch Coupling

Description: FlashShield„ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "FuelGas Piping Systems Using CSST" and listed with CSA, ICC and IAPMO. The FlashShield system is also listedto protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubingprotection and continuous conductivity Applications: XR3 fittings are designed with a patened feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no o-rings or gaskets, the reusable brass components provide a reliable metal-to-metal seat.Couplings allow for the splicing and additions to the flexible gas tubing. Features: Coupling Body, (2) Split Bushings, (2) Nuts Approved for Concealed Use Tool-Less Flare Fitting Design Metal-to-Metal Seal Multi-Point Seal Self-Guiding Fitting Assembly Jacket-LockTM Feature Metal Locking Feature Fully Reusable Fitting Listings: CSA Certificate 2728525 ICC-ES Report No. PMG 1066 and PMG 1155 IAPMO: File No. C-3250 and Report No. 0239 Technical Data: Max. Approved Operating Pressure 25 psi Operating Temperature Range -40F to 160F Fitting Material CA360 Specifications: Temperature Range (F): -40F to 160F Max Pressure: 25 psi
