Zoeller
Submersible Sewage Pump 2hp 460v 70 Feet | 6JGW0 | Worldwide Delivery | +44 203 287 5224 | [email protected]
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, Studio | Zoeller |
|---|---|
| DimensionUnit | inch |
| GraingerSku | 6JGW0 |
| UPC | 053514289812 |
| UnitOfMeasure | EA |
| Voltage | 460 460.0 |
| Weight | 136 |
| WeightUnit | lbs |
| cali_prop65_message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| cali_prop65_orglabel, cali_prop65_whtlabel | True |
| cali_prop65_warnmsgscenario | 7 |
| countryOfOrigin | US |
| extendedLead | 26 |
| extendedQty | -2 |
| height | 45 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 32.75 |
| moq, multiple, tierMinQty1 | 1 |
| MPN, Model, ModelNumber, Model_number | G404 |
| perItemShipping | 200.00 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G7371831 |
| tierPrice1 | 2239.0 |
| url | https://www.zoro.com/zoeller-waste-mate-2-hp-4-manual-submersible-sewage-pump-460v-g404/i/G7371831/ |
| width | 24.5 |
| HP, Pump HP | 2 |
| Phase - Pumps, Input Phase AC, Phase | 3 |
| Switch Actuation, Switch Type - Pumps, Switch Electrical Connection | No Switch Included |
| Body Material, Base Material, Impeller Material, Pump Body Material, Impeller Material - Pumps | Cast Iron |
| Flow Rate @ 10 Ft of Head | 265 gpm |
| Max Head | 33.0 ft |
| Max Diameter Solids | 3 in |
| GPM of Water @ 25 Ft of Head | 134 |
| Amps, Amps - Pumps | 5.20 |
| GPM of Water @ 5 Ft of Head | 300 |
| Voltage - Pumps | 460VAC |
| Cord Length - Pumps | 20 ft. |
| Motor Type | 3-Phase |
| Pump Type | Manual |
| Max Liquid Temp | 140 Degrees F |
| GPM of Water @ 15 Ft of Head | 224 |
| Shaft Seal Material - Pumps, Shaft Seal | Carbon Steel |
| Discharge NPT | 4" |
| Manufacturers Warranty Length | 1 yr |
| Motor RPM | 1725 |
| Housing Material | Cast iron |
| Agency Compliance | CSA Certified, UL Listed |
| Max Head - Pumps | 33 ft. |
| GPM of Water @ 10 Ft of Head | 265 |
| Thermal Protection | Yes |
| Height | 26" 220 75 |
| Diameter | 16-1/8" |
| Bearing Type | Ball |
| Item | Sewage Ejector Pump |
| GPM of Water @ 20 Ft of Head | 184 |
| Max Dia Solids | 3" |
| Cord Length | 20 ft |
| Item - Sewage Pumps | Submersible Sewage Pump |
| Switch Type | None |
| GPM of Water @ 30 Ft of Head | 60 |
| Min Sump Pit Dia | 36 in |
| Duty Cycle | Continuous |
| Flow Rate @ 15 Ft of Head | 224 gpm |
| Rated Voltage | 460V AC |
| Overall Height | 26 in |
| Body Dia | 16 1/8 in |
| Flow Rate @ 20 Ft of Head | 184 gpm |
| Discharge | 4 in Flanged |
| Discharge Dia | 4 in |
| Discharge Standard | Flanged |
| RPM | 1,725 RPM |
| Type | Manual ean upc |
| Country of Origin (subject to change) | United States |
| ASIN, Asin | B08MF5XWSS |
| AdultProduct, Autographed, Memorabilia, TradeInEligible | False |
| Bullet_point | Built with a carbon steel motor shaft. Stainless steel screws, bolts, washers and lifting bracket Cast iron base, cap, motor and pump housing. Cast iron, non-clogging vortex impeller Corrosion-resistant, powder-coated epoxy finish. Mechanical shaft seal - carbon and ceramic rotary face seal, with stainless steel wetted parts Oil filled, hermetically sealed, automatic reset thermal overload protected motor. Stainless steel handle for easy installation and removal Upper sleeve bearing and lower ball bearing running in bath of oil. Neoprene square ring & gasket |
| ClassificationId | 680335011 |
| Color | Stainless Steel |
| DisplayName | Sump Pumps |
| Identifier | 0053514091453 053514091453 |
| IdentifierType | EAN UPC |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name, Title | Zoeller 404-0006, Model G404, Waste-Mate 400 Series, Sewage Submersible Pump, 2 HP, 460 Volts, 3 Phase, 5.2 Amps, 4" Flanged Discharge, 300 GPM Max, 33 ft Max Head, 20 ft Cord, Manual, Single Seal |
| Item_type_keyword | sump-pumps |
| Keyword | 508-0006 | |
| Link | https://m.media-amazon.com/images/I/21gaGZy-p+L._SL75_.jpg https://m.media-amazon.com/images/I/21gaGZy-p+L.jpg |
| Material, MaterialType | Cast Iron Stainless Steel |
| Maximum_flow_rate | 300.0 |
| Mpns | 404-0006 G404 |
| PartNumber, Part_number | 404-0006 |
| Power_source_type | Corded Electric |
| ProductGroup, WebsiteDisplayGroupName | Home Improvement |
| ProductType, ProductTypeName | WATER_PUMP |

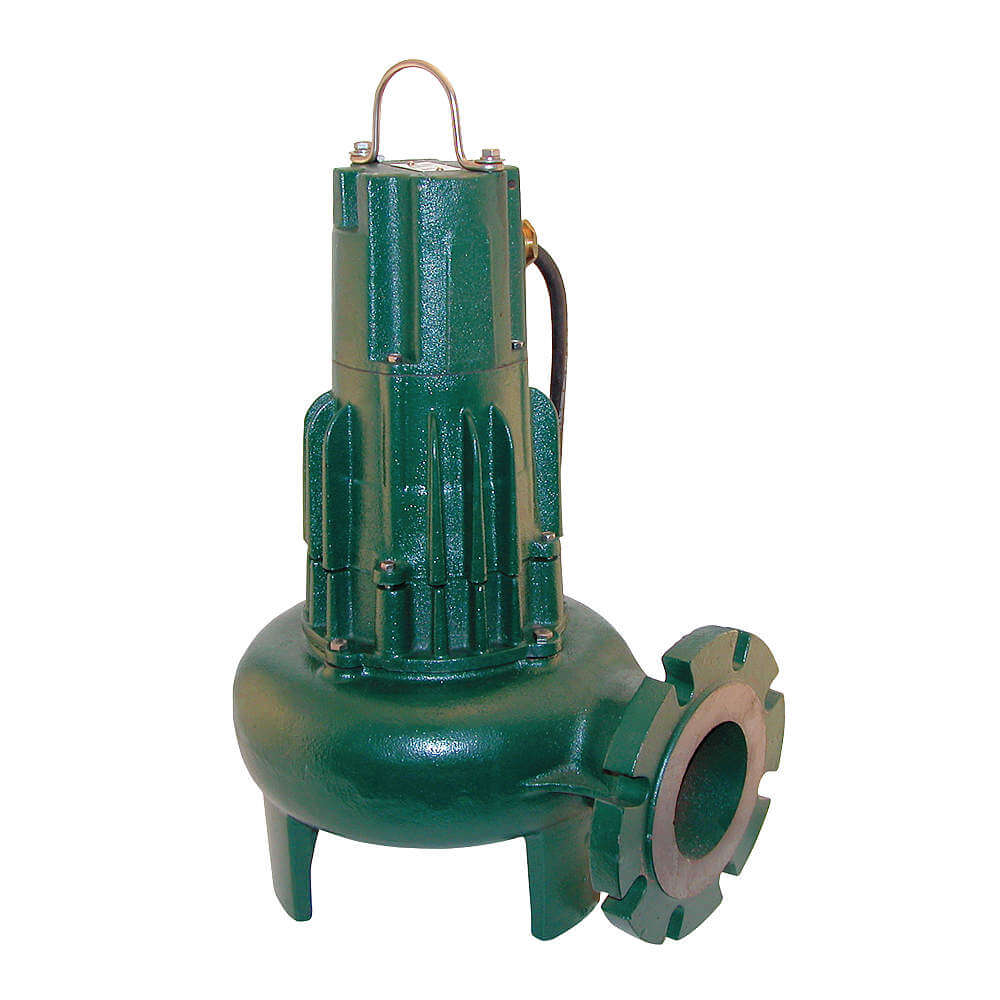

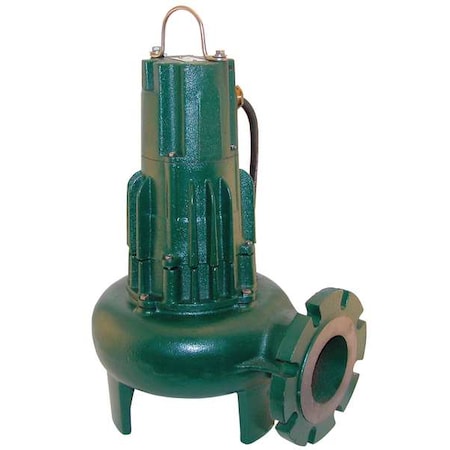

| Product_description | Zoeller "Waste-Mate" Sewage Pump This submersible pump is designed for use in residential or commercial dewatering and wastewater applications and can be used to transfer large volumes of water from parking lots, flooded areas and unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 3" spherical solids. Constructed of non-corrodible hardware, this durable cast iron pump includes a powder coated epoxy finish to prevent corrosion. Every pump is designed to provide heat dissipation from the motor for longer life and lower life cycle cost. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free Includes a stainless steel handle for easy installation and removal. Features Maximum temperature: 130° F 4” horizontal ANSI flanged discharge UL listed, 20 foot 3-wire neoprene cord and plug Control Panel Options Below are the control panels that be used with this pump: 10-1080 10-1108 Note: Image is illustrative and may not reflect details of actual product. Specifications: Brand: Zoeller Model: G404 Series: Waste-Mate 400 Product Type: Sewage pump Application: Sewage/Dewatering pump Operation: Manual Horsepower: 2 HP Voltage: 460 Volts Phase: 3 Frequency: 60 Hz Speed: 1725 RPM Seal Type: Single Pump Housing Material: Cast iron Impeller Material: Cast iron Impeller Type: Non-clogging vortex Maximum Solids Handling: 3" Discharge Connection: 4" flange horizontal Maximum Flow: 300 GPM Maximum Head: 33 ft Cord Length: 20 ft Maximum Fluid Temperature: 130°F |
| Product_site_launch_date | 2020-09-11T03:52:49.110Z |
| StrippedMpns | 4040006 G404 |
| Style | Sewage Pump |
| URL | https://m.media-amazon.com/images/I/21gaGZy-p+L._SL75_.jpg |
| Unit | gallons_per_minute volts |
| Units | pixels |
| Variant | MAIN |
| WebsiteDisplayGroup | home_improvement_display_on_website |
| Width | 220 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G7371831 | 1 | 1 | 1 @ $2239.00 | |
| AE9FVE | 1 | 1 | 1 @ $3630.87 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Zoeller 404-0006, Model G404, Waste-Mate 400 Series, Sewage Submersible Pump, 2 HP, 460 Volts, 3 Phase, 5.2 Amps, 4" Flanged Discharge, 300 GPM Max, 33 ft Max Head, 20 ft Cord, Manual, Single Seal
Brand: Zoeller
Zoeller "Waste-Mate" Sewage Pump This submersible pump is designed for use in residential or commercial dewatering and wastewater applications and can be used to transfer large volumes of water from parking lots, flooded areas and unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 3" spherical solids. Constructed of non-corrodible hardware, this durable cast iron pump includes a powder coated epoxy finish to prevent corrosion. Every pump is designed to provide heat dissipation from the motor for longer life and lower life cycle cost. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free Includes a stainless steel handle for easy installation and removal. Features Maximum temperature: 130° F 4” horizontal ANSI flanged discharge UL listed, 20 foot 3-wire neoprene cord and plug Control Panel Options Below are the control panels that be used with this pump: 10-1080 10-1108 Note: Image is illustrative and may not reflect details of actual product. Specifications: Brand: Zoeller Model: G404 Series: Waste-Mate 400 Product Type: Sewage pump Application: Sewage/Dewatering pump Operation: Manual Horsepower: 2 HP Voltage: 460 Volts Phase: 3 Frequency: 60 Hz Speed: 1725 RPM Seal Type: Single Pump Housing Material: Cast iron Impeller Material: Cast iron Impeller Type: Non-clogging vortex Maximum Solids Handling: 3" Discharge Connection: 4" flange horizontal Maximum Flow: 300 GPM Maximum Head: 33 ft Cord Length: 20 ft Maximum Fluid Temperature: 130°F
Details
- Corrosion-resistant, powder-coated epoxy finish. Mechanical shaft seal - carbon and ceramic rotary face seal, with stainless steel wetted parts
- Cast iron base, cap, motor and pump housing. Cast iron, non-clogging vortex impeller
- Built with a carbon steel motor shaft. Stainless steel screws, bolts, washers and lifting bracket
- Oil filled, hermetically sealed, automatic reset thermal overload protected motor. Stainless steel handle for easy installation and removal
- Upper sleeve bearing and lower ball bearing running in bath of oil. Neoprene square ring & gasket
Listing
| Product group | Home Improvement |
|---|---|
| Product type | WATER_PUMP |
| Model | G404 |
| Part number | 404-0006 |
| Label | Zoeller |
| Manufacturer | Zoeller |
