CANARM . AX18-4

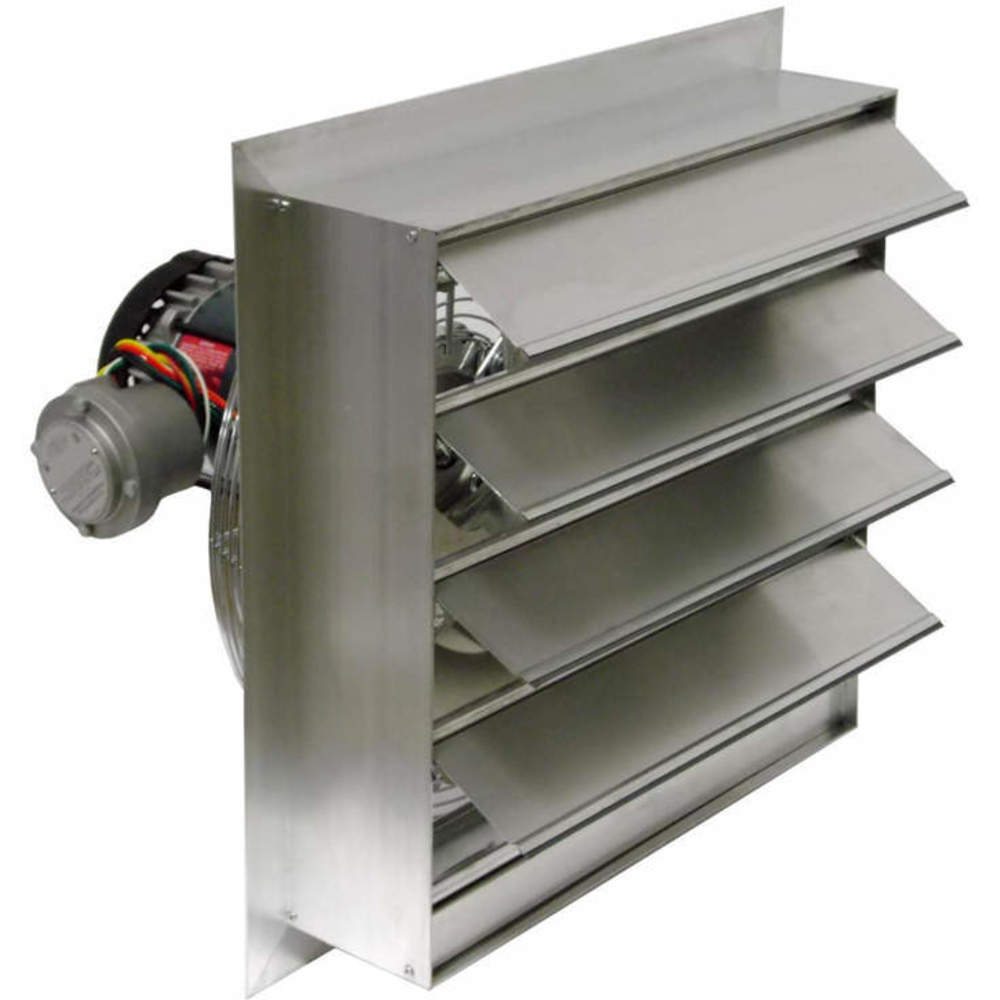

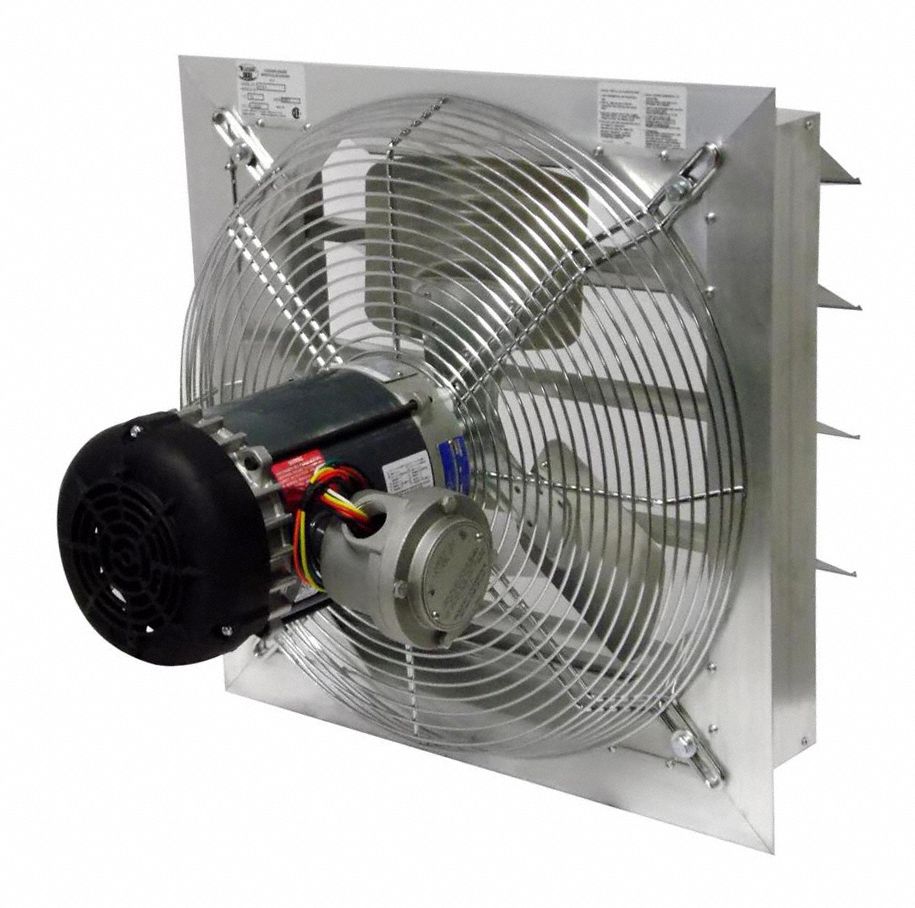

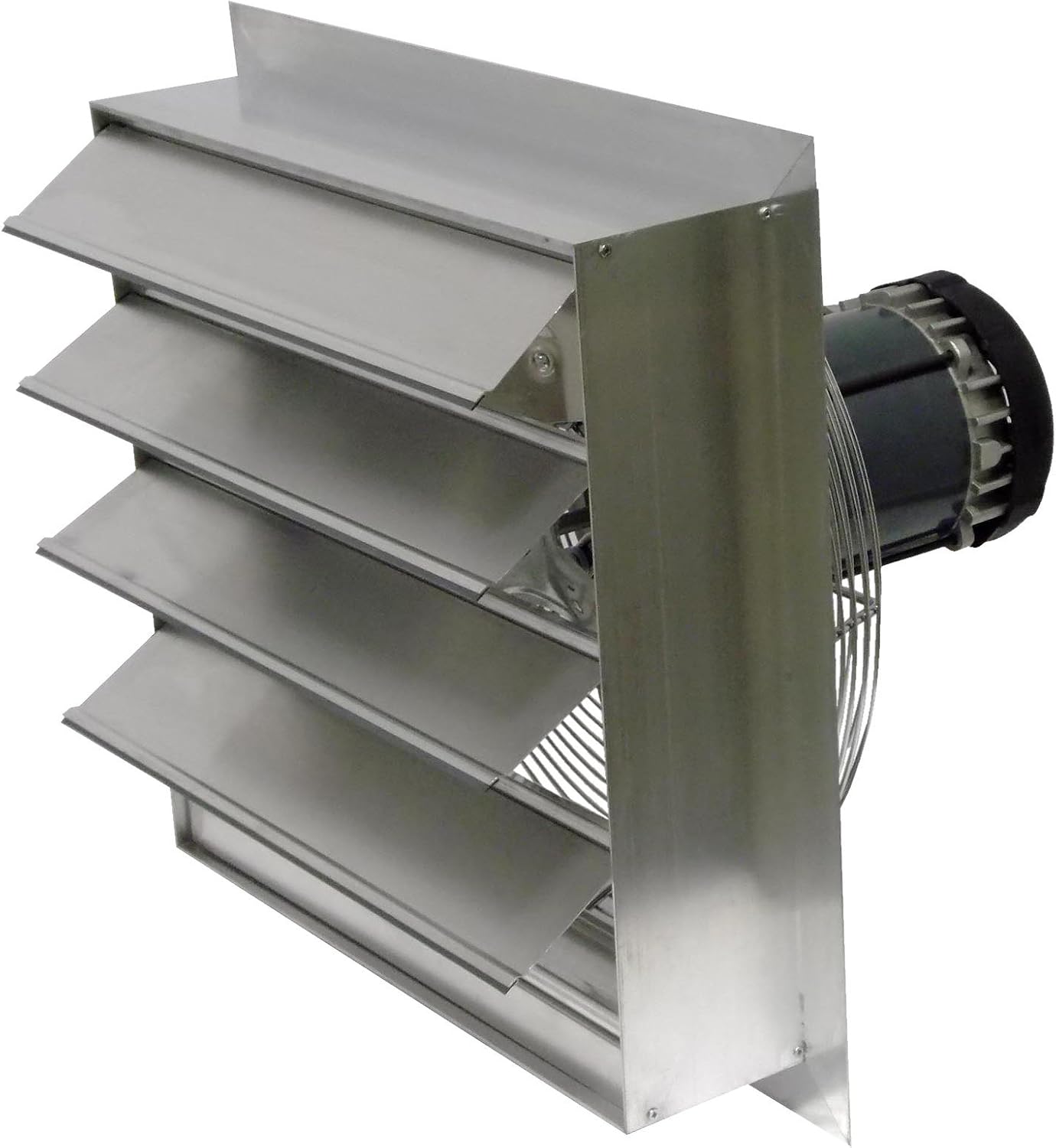

1/3 hpHP 115/208-230V ACV Shutter Mounted Explosion Proof Exhaust Fan This listing is for each. This item requires special shipping, additional charges may apply. Technical Specification Item Shutter Mounted Explosion Proof Exhaust Fan Type Explosion Proof Blade Dia. 18 in CFM @ 0.000-In. SP 3, 200 cfm CFM @ 0.125-In. SP 2, 950 cfm CFM @ 0.250-In. SP 2, 625 cfm Sones @ 0.000-In. SP @ 5 Ft. 23 Fan Voltage 115/208-230V AC Drive Package With Motor Included No Exhaust/Supply Fan Item Exhaust Fan Hz 60 Phase 1 Full Load Amps 6.6/3.1-3.3 Watts 250 W Exhaust/Supply Fan Motor HP 1/3 hp Bearing Type Ball Motor RPM 1, 725 RPM Motor Type Explosion Proof Motor Enclosure Explosion Proof Fan Cooled Motor Insulation Class B Max. Ambient Temp. (F) 104 Degrees F Height (In.) 22 3/4 in Width (In.) 22 3/4 in Max. Depth (In.) 19 in Outside Dia. (In.) 22 3/4 in Venturi Clearance Dia. (In.) 1/8 in Venturi Depth (In.) 5/8 in Shaft Dia. (In.) 1/2 in Mounting Position Horizontal Flange Width (In.) 1 1/2 in Number of Blades 3 Propeller Material Aluminum Frame Material Heavy Duty Aluminum Frame Finish Powder Coated Agency Compliance cETLus For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan Includes Aluminum Blades, Aluminum Housing, EFPC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard Hazardous Location Class 1 C, D / 2 F, G This item is restricted for international sale.
