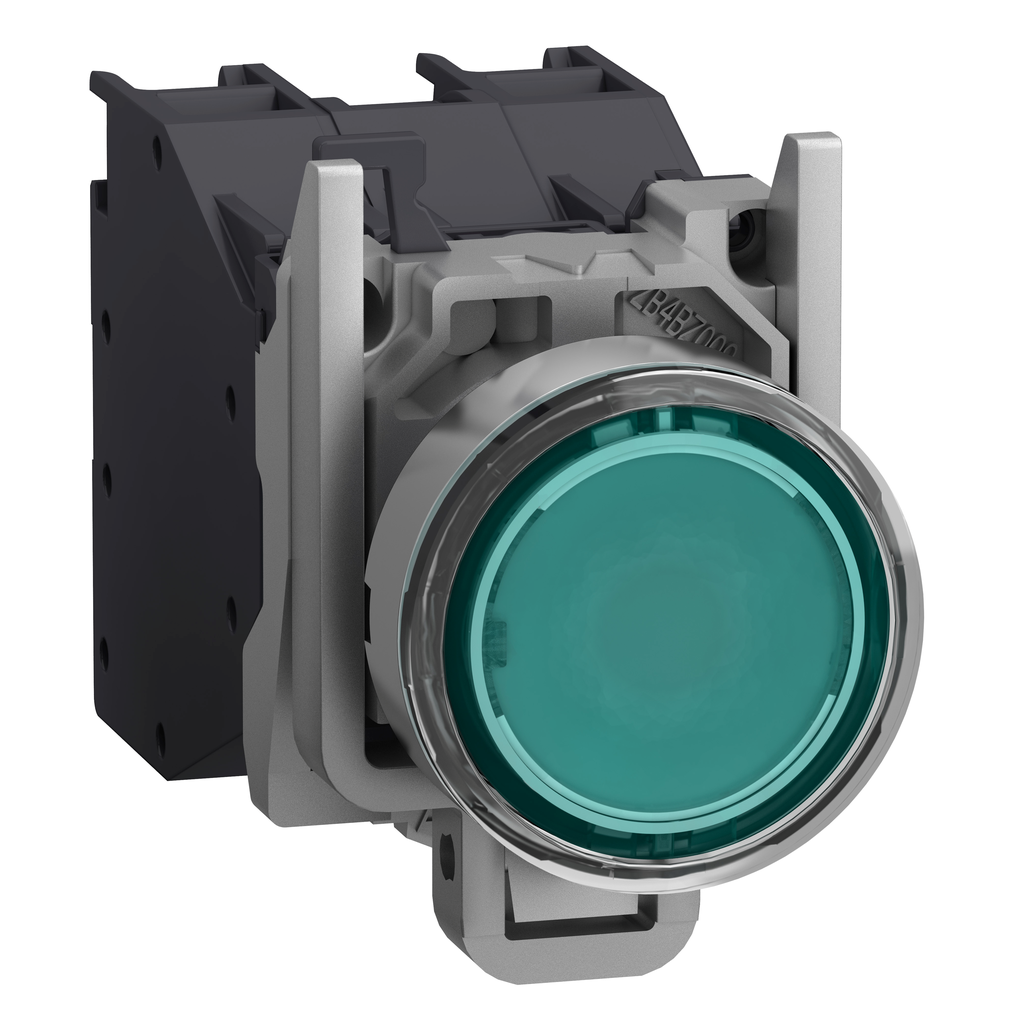

Complete illuminated push button, Harmony XB4 - ATEX D, metal, green flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC | Mayer Electric

SQUARE D . SQDXB4BP383BM5GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete illuminated push button, Harmony XB4 - ATEX D, metal, green flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC | Mayer Electric
UPC3606489485870
Weight0.108
WeightUnitkg
Weight_AttribNet Weight
depth, length72.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Complete-illuminated-push-button-Harmony-XB4-ATEX-D-metal-green-flush-22mm-spring-return-booted-1NO-24-254V-AC-DC-3606489485870
jsonUrlData23fec22d4-f5dc-4ec6-a74c-aeea0058049a
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4BP383BM5GEX
qtyInStock0
tierPrice1210.06
width46.2
width_AttribWidth
Operator Additional Informationbooted (clear silicon)
Range Of ProductHarmony XB4
Dust Zonezone 21 - 22
Mounting Diameter22 mm
Type Of Operatorspring return
Product Or Component Typecomplete illuminated push-button
Fixing Collar Materialzamak
Gas Zonezone 1 - 2
Contacts Type And Composition1 NO
Bezel Materialchromium plated metal
Operator Profilegreen flush
Device Short NameXB4
[Us] Rated Supply Voltage24...254 V AC/DC
Height30 mm
Operating Force3.962 N
Embedding Depth58 mm
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Operating Travel1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
Light Sourceintegral LED
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingEx db eb mb IIC Gb || II 2 GD || Ex tb IIIC Db
Net Weight0.108 kg
Current Consumption2...10 mA
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Service Life100000 h
[Ui] Rated Insulation Voltage415 V
Signalling Typesteady
Contact Operationslow-break
Mechanical Durability5000000 cycles
Width46.2 mm
Depth72 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-75 ?C
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-18:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-18 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Ip Degree Of ProtectionIP66 IEC 60529
Ambient Air Temperature For Storage-40-70 ?C
Overvoltage CategoryI IEC 60536
Protective TreatmentTH
