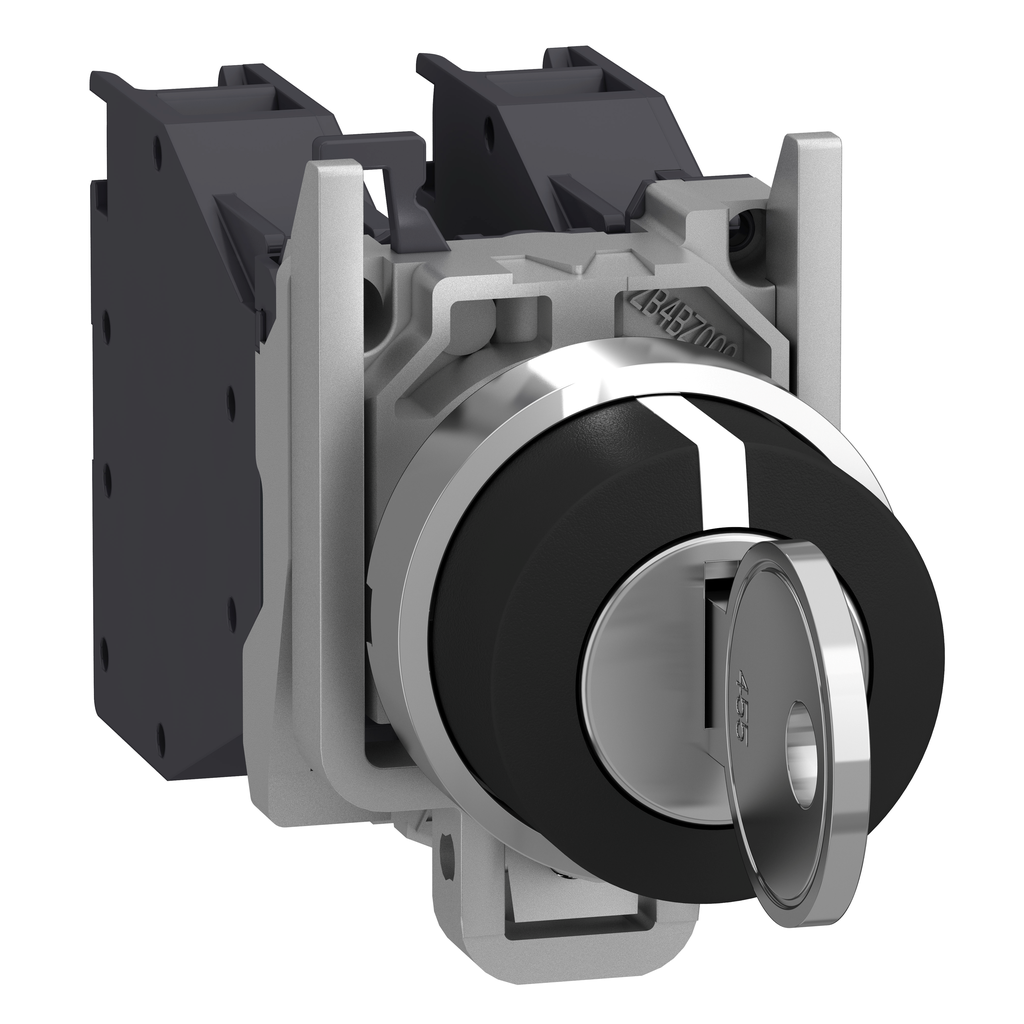

Explosive atmosphere - 455 Key selector switch 3 positions stay put | Mayer Electric

Mayer Electric Supply . SQDXB4BG03GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameExplosive atmosphere - 455 Key selector switch 3 positions stay put | Mayer Electric
UPC3606489485740
Weight0.176
WeightUnitkg
Weight_AttribNet Weight
depth, length110.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Explosive-atmosphere-455-Key-selector-switch-3-positions-stay-put-3606489485740
jsonUrlData2b9691877-bb94-40a6-9beb-ade40063b7d0
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4BG03GEX
qtyInStock0
tierPrice1196.31
width46.2
width_AttribWidth
Gas Zonezone 1 - 2
Contacts Type And Composition2 NO
Key Number455
Range Of ProductHarmony XB4
Bezel Materialchromium plated metal
Dust Zonezone 21 - 22
Operator Profilekey switch
Mounting Diameter22 mm
Type Of Operatorstay put
Product Or Component Typecomplete selector switch
Device Short NameXB4
Fixing Collar Materialzamak
Key Withdrawal Positionin any position
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Contacts Usagestandard contacts
Height30 mm
[Ui] Rated Insulation Voltage415 V
Embedding Depth58 mm
Contact Operationslow-break
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Operator Position Information3 positions +/- 45?
Mechanical Durability5000000 cycles
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingEx db eb IIC Gb || II 2 GD || Ex tb IIIC Db
Width46.2 mm
Depth110 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Net Weight0.176 kg
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-75 ?C
Ambient Air Temperature For Storage-40-70 ?C
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-1:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Protective TreatmentTH
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXB4BG03GEX111 @ $196.31
