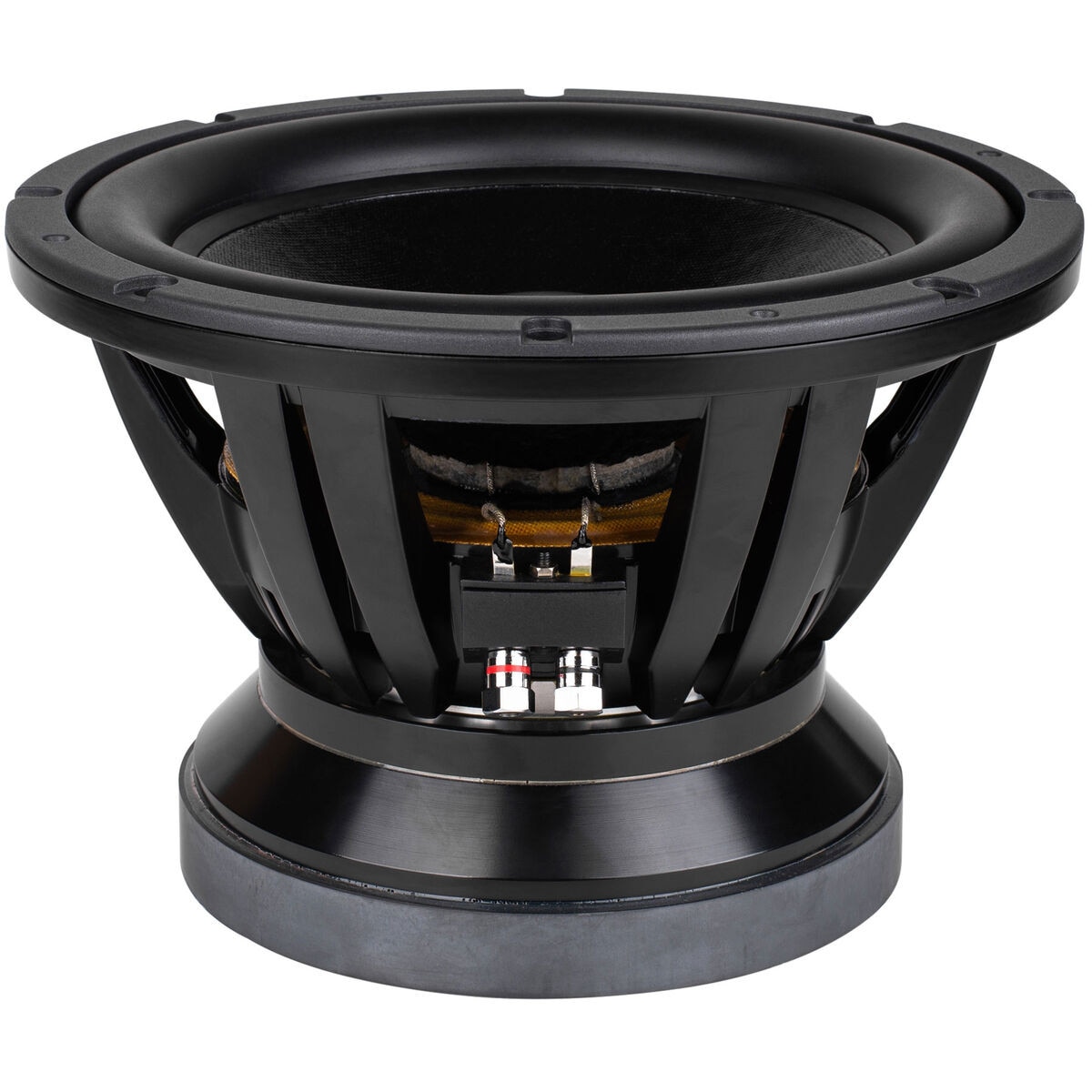

CSS SDX12 XBL2 12" Subwoofer

CSS SDX12 XBL2 12" Subwoofer. Part Number: 290-3006 by CSS.

CSS . SDX12

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCSS
DimensionUnitinch
Extra Product NameCSS SDX12 XBL2 12" Subwoofer
UPC848864053752
Weight47.5
WeightUnitlbs
depth, length8.13
diameter, height, width12.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSDX12
qtyInStock-2
qtySourceFieldMap
SKU, Part Number290-3006
snippetCSS SDX12 XBL2 12" Subwoofer. Part Number: 290-3006 by CSS.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.69
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance4?
Frequency Response16 to 500Hz
Sensitivity87.2dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)21.3Hz
DC Resistance (Re)3.7?
Voice Coil Inductance (Le)1.38mH
Mechanical Q (Qms)3.962
Electromagnetic Q (Qes)0.414
Total Q (Qts)0.374
Compliance Equivalent Volume (Vas)2.38ft?
BL Product (BL)18.4T?m
Diaphragm Mass Inc Airload (Mms)275.9g
Maximum Linear Excursion (Xmax)28mm
Surface Area of Cone (Sd)491cm?
Cone MaterialPaper / Carbon Fiber
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.28"
Baffle Cutout Diameter10.9"
Depth8.13"
# Mounting Holes8
Sealed Volume0.8ft?
Sealed F345.1Hz
Vented Volume1.75ft?
Vented F324.1Hz
