IXFB44N100Q3 IXYS | Discrete Semiconductor Products | DigiKey

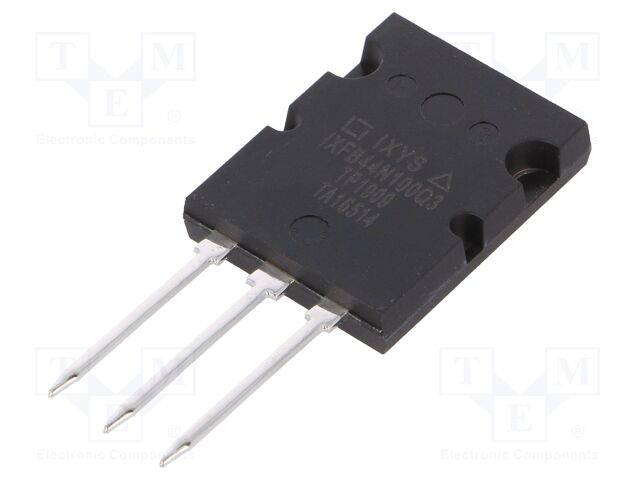

IXYS IXFB44N100Q3 | Transistor: N-MOSFET; unipolar; 1kV; 44A; 1560W; PLUS264
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXFB44N100Q3 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | IXFB44N100Q3 |
| qtyInStock | 20 |
| SKU | IXFB44N100Q3-ND |
| Part Status, FET Feature | - |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 220mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 8mA |
| Vgs (Max) | ?30V |
| Power Dissipation (Max) | 1560W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PLUS264? |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 1000 V |
| Gate Charge (Qg) (Max) @ Vgs | 264 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 13600 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXFB44N100Q3-ND | 1 | 20 | 1 | |
| RS Delivers | 168-4697 | 25 | 25 | 25 @ $30.59, 50 @ $29.06 | |
| Future Electronics | 4021992 | 25 | 25 | 25 @ $25.08 | |
| IXFB44N100Q3 | 1 | 1 | 1 @ $42.49, 3 @ $38.12, 10 @ $35.57, 25 @ $34.29 | ||
| Digi-Key | 2773902 | 1 | 1 | 1 @ $45.47, 10 @ $42.42, 100 @ $36.83 | |
| RS Delivers | 801-1373 | 1 | 1 | ||
| RS Delivers | 801-1373P | 1 | 1 |
