ACTi . E33A

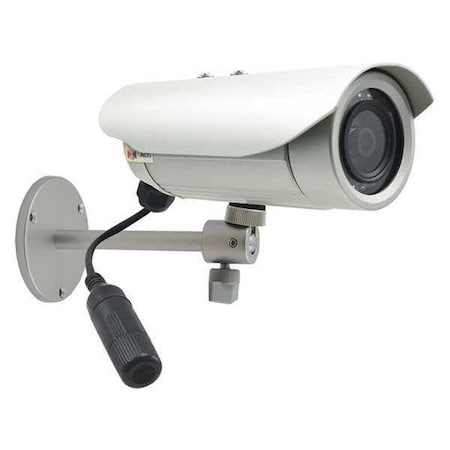

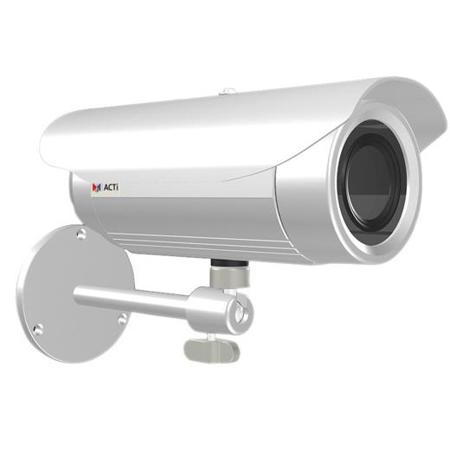

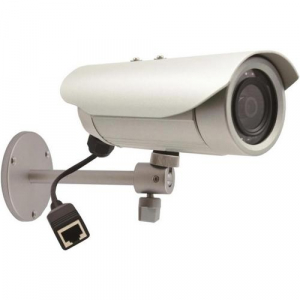

ACTi E33A 5MP Bullet Camera with D/N, Adaptive IR, Basic WDR, Fixed Lens, f4.2mm/F1.8 (HOV:62.7°), H.264, 1080p/30fps, DNR, MicroSDHC/MicroSDXC, PoE, IP68, IK10 (Metal Casing) Key Features Day & Night with Adaptive IR LED Fixed Lens with f4.2mm/F1.8 Basic WDR (74 dB) Event trigger, response and notification Specifications Maximum Resolution: 5MP Application Environment: Outdoor Image Sensor: Progressive Scan CMOS Sensor Size: 1/3.2" Effective Pixels: 2592x1944 Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400K); B/W: 0 lux at F1.8 (IR LED on) Mechanical IR Cut Filter: Yes IR Sensitivity Range: 700-1100nm IR LED: Adaptive IR LED x 15 (850 nm) IR Working Distance: 30m Electronic Shutter: 1/5-1/2000 second (manual); 1/5-1/10000 second (auto) Horizontal Resolution: 1350 TV Lines S/N Ratio: 52 dB Focal Length: Fixed focal, f4.2mm Aperture: F1.8 Iris: Fixed iris Focus: Fixed focus Lens Mount: Board Viewing Angle: 62.7°H x 46.5°V Compression: H.264 (Baseline/Main/High profile), MJPEG Bit Rate: 28Kbps-6Mbps (per stream) Digital Noise Reduction: DNR Privacy Mask: 4 configurable regions On-Screen Graphics: Yes Ethernet Port: 1x RJ-45 pigtail connector GPS Position: Manual setting ONVIF Compliant: Yes, Profile S, Profile G, Profile T, Profile Q Power Source: PoE Class 2 (IEEE802.3af) Power Consumption: 5.04W (PoE) Environmental Casing: Weatherproof (IP68), Vandal proof metal casing (IK10) Starting Temperature: -20°C~50°C Operating Temperature: -40°C~50°C Operating Humidity: 10%-85% RH EAN: 4718201798348 UPC: 888034004689 Dimensions: 3.03"x7.48" Weight: 1.29lb

The 5MP Outdoor Bullet Camera from ACTi utilizes a 1/3.2" progressive-scan CMOS sensor to capture video in 2592 x 1944 resolution at 15 fps, and it features a 4.2mm lens for a 62.7° horizontal field of view. Twenty integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR, white balance, automatic gain control, and digital noise reduction enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process. The camera can be programmed to set off an alarm when motion is detected in any of three configurable zones. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your FTP server. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices, and its IP68-rated weatherproof and IK10-rated vandal-proof metal enclosure enables the camera to be installed outdoors and in high-risk areas.
