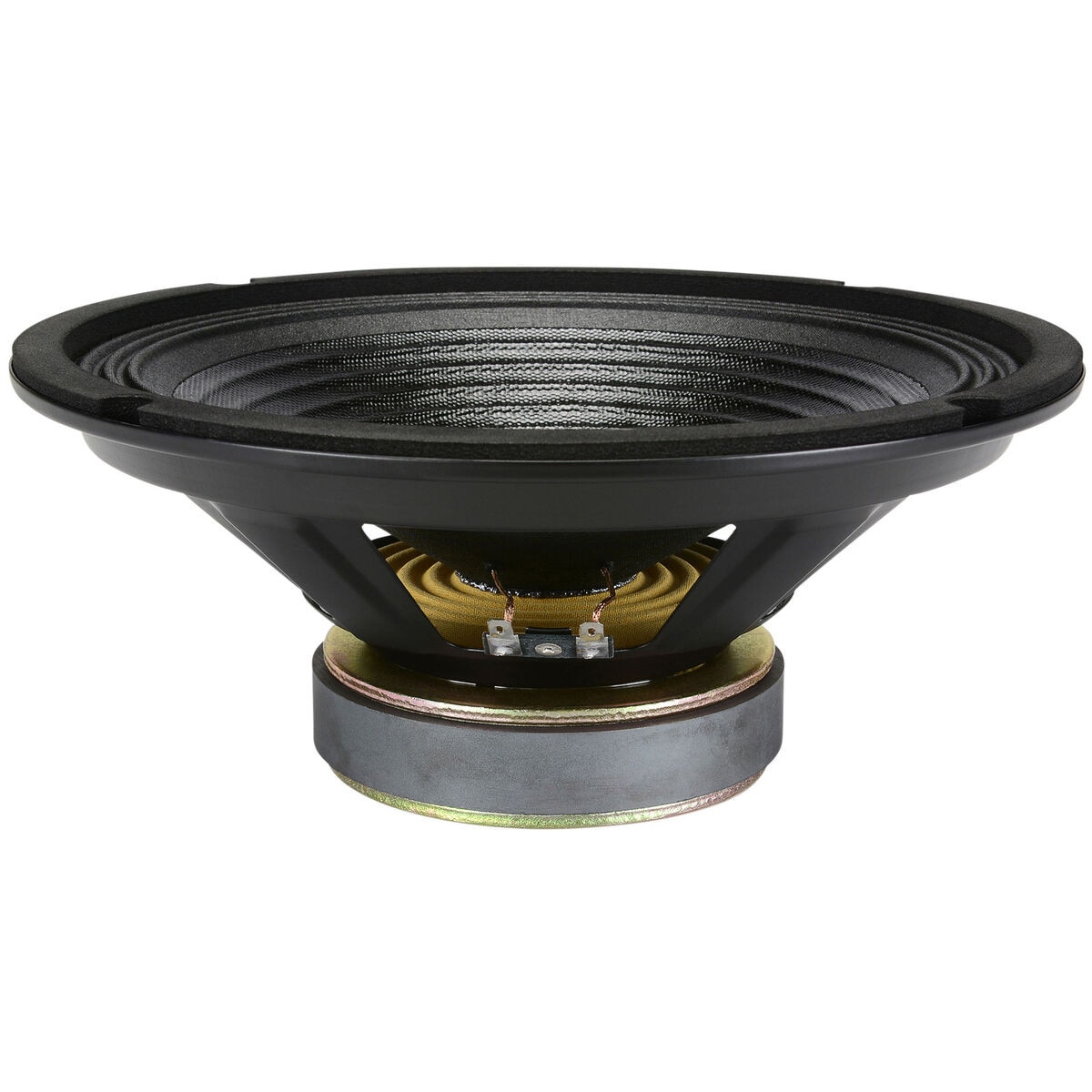

Goldwood GW-1038/PA 10" PA / Musical Instrument Speaker

Goldwood GW-1038/PA 10" PA / Musical Instrument Speaker. Part Number: 290-390 by Goldwood.

Goldwood . GW-1038P/A

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandGoldwood
DimensionUnitinch
Extra Product NameGoldwood GW-1038/PA 10" PA / Musical Instrument Speaker
UPC643420100129
Weight5
WeightUnitlbs
depth, length5.0
diameter, height, width10.125
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelGW-1038P/A
qtyInStock-2
qtySourceFieldMap
SKU, Part Number290-390
snippetGoldwood GW-1038/PA 10" PA / Musical Instrument Speaker. Part Number: 290-390 by Goldwood.
Unit of MeasureEach
Nominal Diameter10"
Power Handling (RMS)120 Watts
Power Handling (MAX)210 Watts
Impedance8?
Frequency Response28 to 8,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1.5"
Resonant Frequency (Fs)63.3Hz
DC Resistance (Re)7.3?
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)4.19
Electromagnetic Q (Qes)1.21
Total Q (Qts)0.94
Compliance Equivalent Volume (Vas)1.66ft?
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)7.65T?m
Diaphragm Mass Inc Airload (Mms)24.5g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)360.7cm?
Cone Material, Surround MaterialPaper
Magnet MaterialFerrite
Overall Outside Diameter10.125"
Baffle Cutout Diameter9.25"
Depth5"
# Mounting Holes4
Sealed Volume1.5ft?
Sealed F369.6Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com290-3901-21
