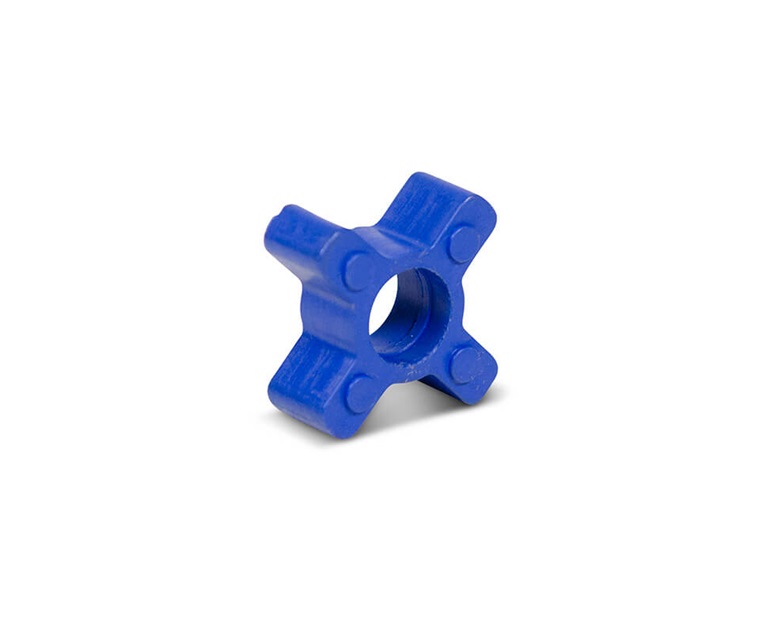

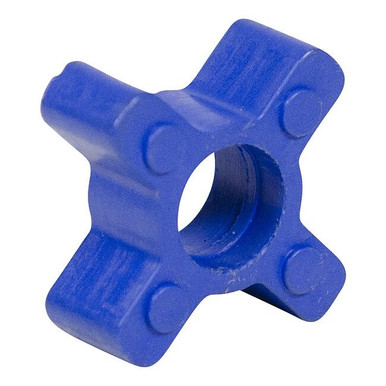

L070U URETHANE SPIDER

L070U URETHANE SPIDER

TB Woods . L070U

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Jaw Couplings
CategoryL3Components
CategoryL4Spider Elements
Extra Product Name, snippetL070U URETHANE SPIDER
moq, multiple9
MPNL070U
qtyInStock0
SKU339958
tierMinQty1, Element thickness1
tierPrice17.49
Product familyL-Jaw Spider
Size code70
Element typeOpen Center Spider
Dimension (in ) (OD)1.360
Thickness, Thickness (in)0.44
Max compatible bore size0.75
Horsepower Rating at 100 RPM37
Max speed14000
Overall length2
Min compatible bore size0.25
Chemical resistance, Oil resistance, FlexibilityGood
Center hole0.46
Temperature rating-35?C to 71?C
Material typeUrethane, Blue
Element durometer90A
Torsional stiffnessMedium Soft
Power rating at 100 RPM0.10 HP
Jaw typeStraight
Max parallel misalignment0.015
O D1.36
Element materialUrethane
Max angular misalignment1?
Coupling sizeL070
Torque7.3 Nm
