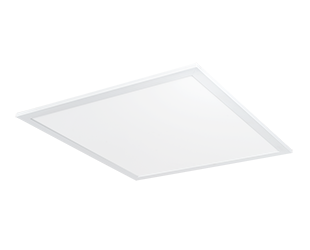

EZPAN2X2-40N/D10 | Mayer Electric
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Mayer Electric Supply |
|---|---|
| Extra Product Name | EZPAN2X2-40N/D10 | Mayer Electric |
| UPC | 019813491561 |
| Weight | 6.6 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| jsonUrlData | /Product/RAB-LIGHTING-EZPAN2X2-40N-D10-019813491561 |
| jsonUrlData2 | 1def861e-794b-4708-bf4d-abb200c9b3a3 |
| moq, multiple, tierMinQty1 | 1 |
| MPN | EZPAN2X2-40N/D10 |
| qtyInStock | 0 |
| SKU | RABEZPAN2X240ND10 |
| tierPrice1 | 69.52 |
| UL Listed | Suitable for damp locations |
| CCEA Compliant | Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. |
| Watts | 40W |
| Color Temp | 4000K (Neutral) |
| Lumens | 4,542 lm |
| Efficacy | 111 lm/W |
| Color Accuracy | 82 CRI |
| Type | Constant Current |
| 120V | 0.33A |
| 208V | 0.22A |
| 240V | 0.19A |
| 277V, Driver : Constant Current, Class 2, 50/60 Hz, 120-277V, 120V: 0 33A, 208V: 0 22A, 240V: 0 19A, 277V | 0.16A |
| Input Watts | 41W |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| IC Rated | Suitable for insulated ceilings |
| Maximum Ambient Temperature | Suitable for use in up to -30?C (-22?F) to 50?C(122?F) |
| Lens | Frosted polystyrene |
| Mounting | Recessed ceiling |
| Housing | Lightweight aluminum housing, steel pan and junction box |
| Installation | Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 8.78% at 120V, 14.11% at 277V |
| Power Factor | 99.1% at 120V, 95.7% at 277V |
| Note | All values are typical (tolerance +/- 10%) |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| RABEZPAN2X240ND10 | 1 | 1 | 1 @ $69.52 |
