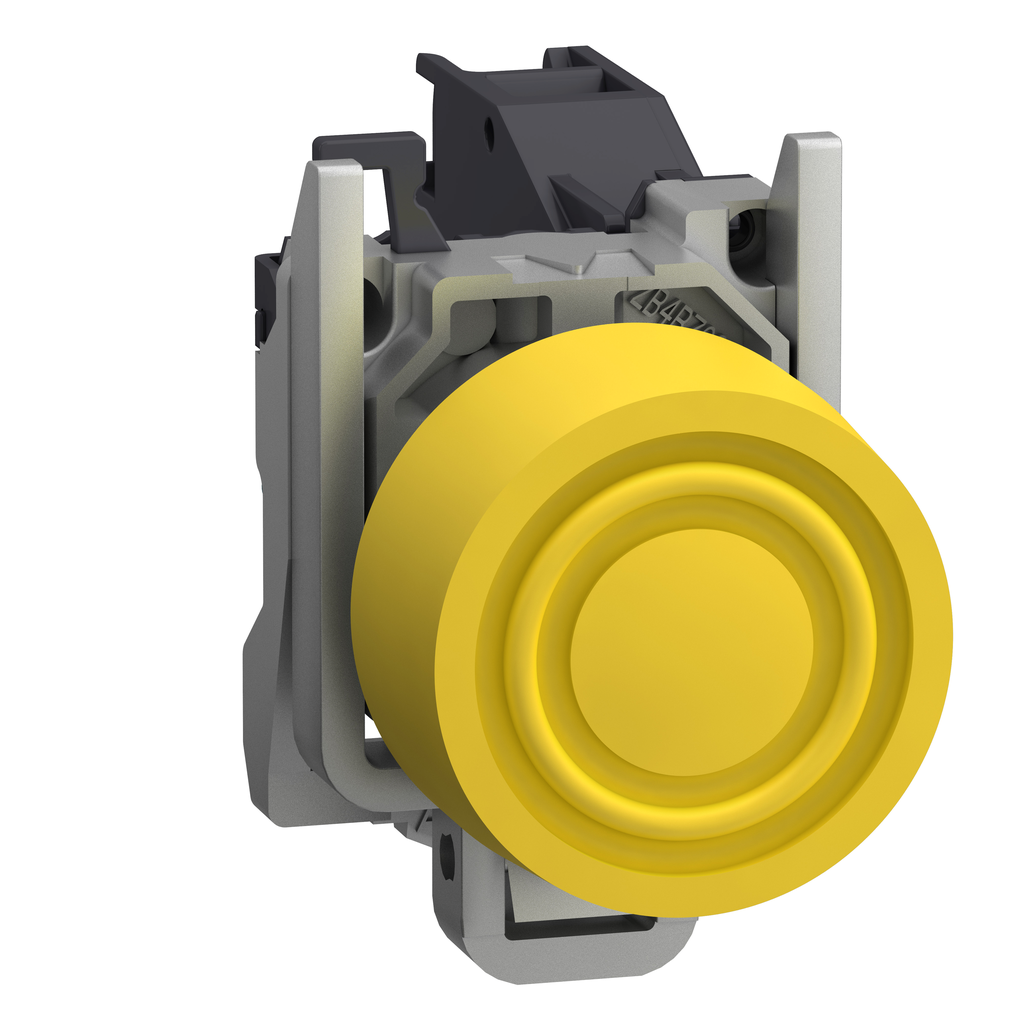

Complete push button, Harmony XB4, Explosive atmosphere, pushbutton yellow with integrated boot | Mayer Electric

SQUARE D . SQDXB4BPS51GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete push button, Harmony XB4, Explosive atmosphere, pushbutton yellow with integrated boot | Mayer Electric
UPC, MPN, SKUSQDXB4BPS51GEX
Weight0.08
WeightUnitkg
Weight_AttribNet Weight
depth, length72.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Complete-push-button-Harmony-XB4-Explosive-atmosphere-pushbutton-yellow-with-integrated-boot-SQDXB4BPS51GEX
jsonUrlData20341a957-1f62-4669-91b4-aeea005804b8
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
qtyInStock0
tierPrice181.0
width46.2
width_AttribWidth
Gas Zonezone 1 - 2
Contacts Type And Composition1 NO
Operator Additional Informationbooted (coloured silicon)
Range Of ProductHarmony XB4
Bezel Materialchromium plated metal
Dust Zonezone 21 - 22
Operator Profileyellow projecting
Mounting Diameter22 mm
Type Of Operatorspring return
Product Or Component Typecomplete push-button
Device Short NameXB4
Fixing Collar Materialzamak
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Height30 mm
[Ui] Rated Insulation Voltage415 V
Operating Force3.962 N
Embedding Depth58 mm
Contact Operationslow-break
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Operating Travel1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
Mechanical Durability5000000 cycles
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingII 2 GD || Ex db eb IIC Gb || Ex tb IIIC Db
Width46.2 mm
Depth72 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Net Weight0.08 kg
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-75 ?C
Ambient Air Temperature For Storage-40-70 ?C
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-1:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Protective TreatmentTH
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXB4BPS51GEX111 @ $81.00
