Parker

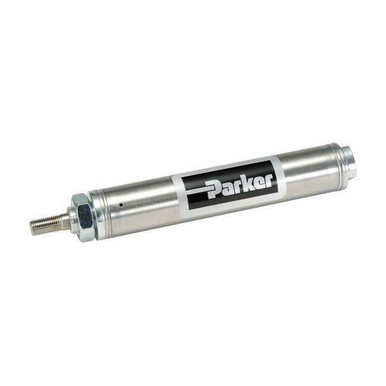

Round Air Cylinder 7/16 Inch Bore 1 Inch Stroke | 49J565 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.44NSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J565
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.15
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.5
jsonUrlData924526ffbdad25e5923b
length3.69
moq, multiple, tierMinQty11
MPN0.44NSR01.00
qtyInStock35
qtyInStockOverride-2
SKUG6125996
tierPrice118.38
urlhttps://www.zoro.com/parker-air-cylinder-716-in-bore-1-in-stroke-round-body-single-acting-044nsr0100/i/G6125996/
Promotion RestrictionNot eligible for promotion
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingSingle Acting
Bore Dia, Air Cylinder Bore Dia7/16 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.188 in
Overall Length3.7 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountNose
Port Size, Rod Thread Size, Dimension Kk#10-32 UNF
Air Cylinder TypeRound Body
Piston Material, End Cap MaterialAluminum
Dimension E0.38 in
Dimension A1/2 in
FinishSilver
Nose Mount Thread, Dimension N13/8"-24
FeaturesNon-Switch Ready
Temp Range-10 Degrees to 165 Degrees F
Dimension B0.374 in
Spring Retraction Force1 lb
Dimension J0.19 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG612599613511 @ $18.38
Grainger49J56511
Raptor SuppliesAJ2DYJ111 @ $38.11
AmazonSCB076C565P511
Applied Industrial10218403511
simsupply.comZO-G612599612311 @ $37.80
Radwell0.44NSR01.0011
