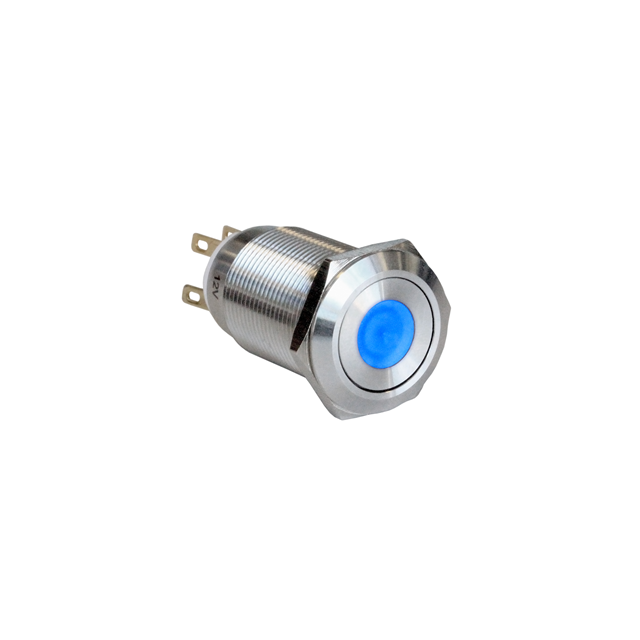

BULGIN MPI005DTELSBL12 | Switch: vandal resistant; Pos: 2; SPST NC + NO; 3A/250VAC; IP65

BULGIN MPI005DTELSBL12 | Switch: vandal resistant; Pos: 2; SPST NC + NO; 3A/250VAC; IP6

BULGIN . MPI005DTELSBL12

Attributes

Brand name, Manufacturer name, ManufacturerBULGIN
CategoryL1Switches and Indicators
CategoryL2Vandal Resistant Switches
CategoryL3Push Button Switches
DimensionUnitmm
Extra Product NameBULGIN MPI005DTELSBL12 | Switch: vandal resistant; Pos: 2; SPST NC + NO; 3A/250VAC; IP65
atoms, moq, multiple1
diameter, length, width19.2
jsonUrlData79cc763a7ac915a50b7ab3bd374fc7e3.5
jsonUrlData2ade265571a19cad54ae9
keywordsBULGIN, MPI005DTELSBL12, Switches and Indicators, Vandal Resistant Switches, Push Button Switches
length_Attrib, width_AttribMounting hole diameter
MPN, SKUMPI005DTELSBL12
qtyInStock0
snippetBULGIN MPI005DTELSBL12 | Switch: vandal resistant; Pos: 2; SPST NC + NO; 3A/250VAC; IP6
Type of switchvandal resistant
Number of positions, Stable positions number2
Contacts configurationSPST NC + NO
AC contacts rating @R3A / 250V AC
DC contacts rating @R5A / 12V DC
IP ratingIP65
IlluminationLED,
Backlight colourblue
Leadsscrew terminals
Operating temperature-25...55?C
Electrical life50000 cycles
Max contact resistance:50m?
Mechanical durability1000000 cycles
Mounting hole diameter?19.2mm
Contact platinggold-plated
Manufacturer seriesMPI

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEMPI005DTELSBL1211
Digi-Key708-MPI005DTELSBL12-ND111 @ $30.64, 10 @ $27.88, 25 @ $26.58, 50 @ $24.80, 100 @ $23.83, 250 @ $22.21, 500 @ $19.45
Digi-Key12353976500405001 @ $39.67, 10 @ $36.10, 25 @ $34.42, 50 @ $32.11, 100 @ $30.85, 250 @ $28.75, 500 @ $25.98
us.rs-online.com74176837404040 @ $42.52
