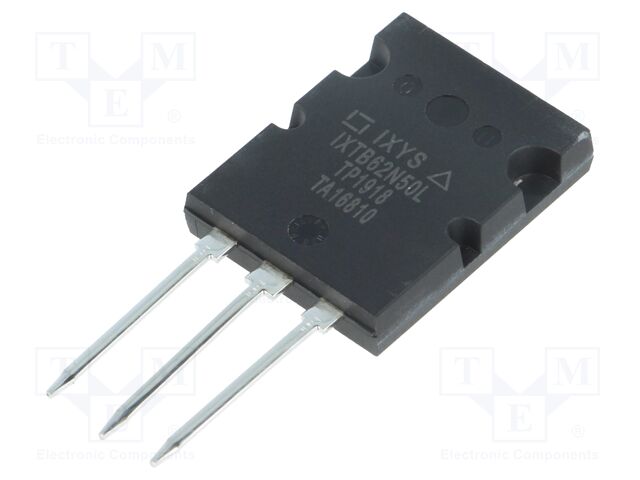

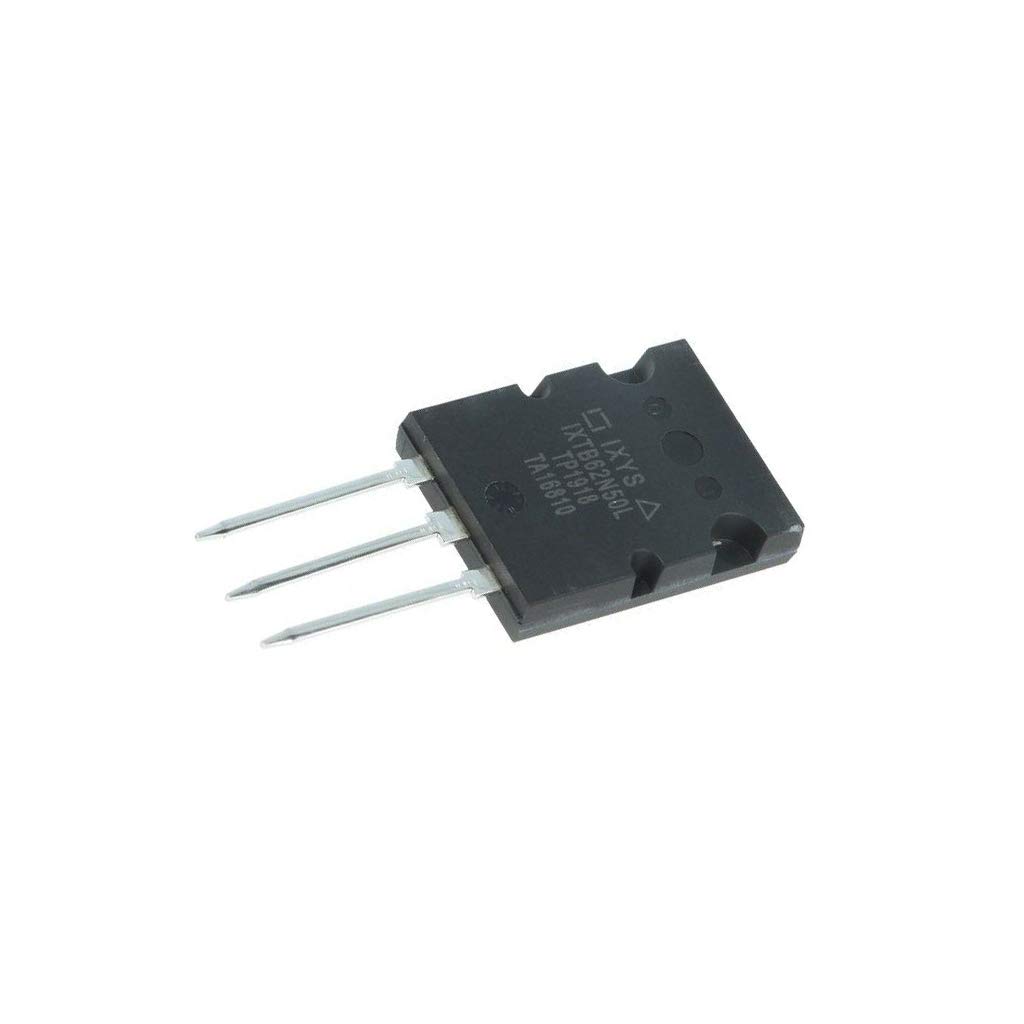

IXTB62N50L IXYS | Discrete Semiconductor Products | DigiKey
The page you requested was not found, and we have a fine guess why.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXTB62N50L IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | IXTB62N50L |
| qtyInStock | 111 |
| SKU | IXTB62N50L-ND |
| Series, FET Feature | - |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 62A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 31A, 20V |
| Vgs(th) (Max) @ Id | 5.5V @ 250?A |
| Vgs (Max) | ?30V |
| Power Dissipation (Max) | 800W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PLUS264? |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 550 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 11500 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXTB62N50L-ND | 1 | 111 | 1 | |
| Galco | IXTB62N50L | 1 | 1 | ||
| Future Electronics | 2456291 | 1 | 154 | 1 | 1 @ $53.87, 2 @ $49.10, 5 @ $43.43, 10 @ $39.59, 25 @ $35.02 |
| IXTB62N50L | 1 | 11 | 1 | 1 @ $67.56, 3 @ $59.77, 10 @ $53.70, 25 @ $50.02 | |
 AmazonTP | B0731RQ3YM | 1 | 1 | 1 @ $70.00 | |
 AmazonSC | B0731RQ3YM | 1 | -2 | 1 | 1 @ $70.00 |
| Digi-Key | 1652441 | 1 | 1 | 1 @ $58.01, 10 @ $54.50, 100 @ $48.87 |
