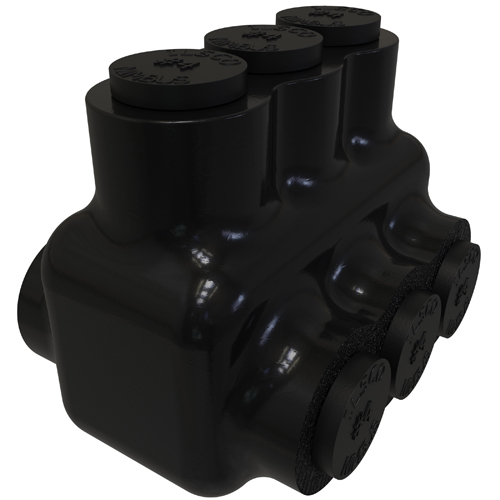

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 3 Ports, Dual Sided Entry, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . PBTD-3-4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameNimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 3 Ports, Dual Sided Entry, Tin Plated, UL, CSA | Mayer Electric
UPC783669077124
Weight0.088
WeightUnitlbs
Weight_AttribWeight
height1.415
height_AttribHeight
jsonUrlData/Product/ILSCO-Nimbus-Insulated-Aluminum-Multi-Tap-Connector-Conductor-Range-4-14-3-Ports-Dual-Sided-Entry-Tin-Plated-UL-CSA-783669077124
jsonUrlData2e403c7f1-3740-4726-a53b-abb200c8ede1
length1.698
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNPBTD-3-4
qtyInStock0
SKUILSPBTD34
tierPrice138.82
width1.394
width_AttribWidth
Height1.415 in
Length1.698 in
Width1.394 in
ConnectionMechanical
Contains DE-OX?, Dual RatedYes
Number of Conductors, Number of Ports / Wireways, Number of Usable Ports, Number of Usable Taps3
Replacement Part(s)PLUG-4
Drive Size Main1/8
Drive Type MainInternal Hex
Height BX (IN)2
Max Insulation OD (IN)0.317
Max Insulation OD (mm)8.0518
Weight BX (LB)1.203
Width BX (IN)6.1875
Conductor TypeSolid, Stranded
Conductor MaterialCopper, Aluminum
Connector FinishTin
InsulationPlastisol
MaterialAluminum
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Wire Binding Hardware MaterialSteel
Wire Binding Screw Size1/4
Wire Binding Torque10 - 18 AWG = 20, 8 AWG = 25, 2 AWG = 40, 4 - 6 AWG = 35
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line), Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Voltage Rating600 V
Cap Color Main, Cap Color Tap, ColorBlack
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 Compliance : WARNINGCancer and Reproductive Harm - www.P65warnings.ca.gov
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 12
NEMA CodeS-588-4
UPC Code78366907712
Environmental ConditionsCold temperature rated to -45?C
Flammability RatingInsulation rated per UL 94
Temperature Rating90?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSPBTD34111 @ $38.82
