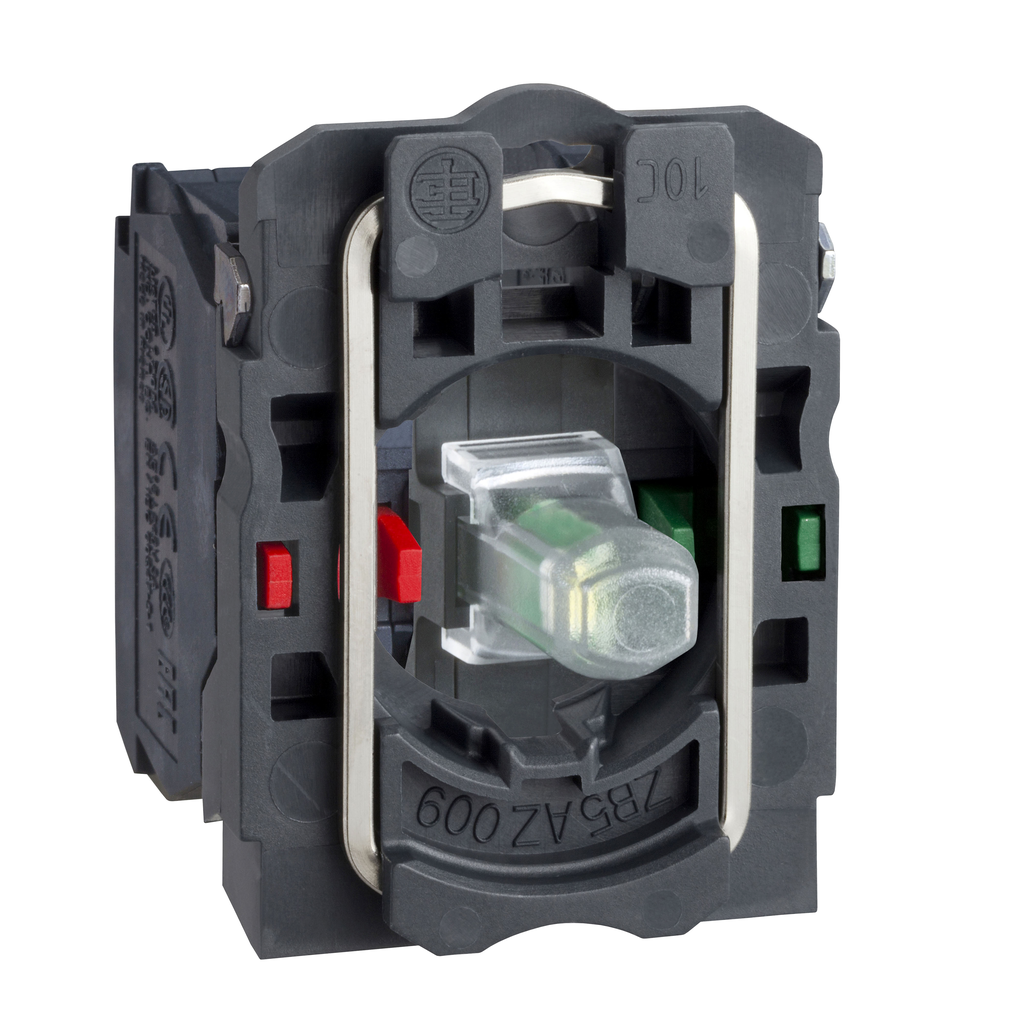

Complete body/contact assembly and light block, Harmony XB5, XB4, white, with body/fixing collar, universal LED, 230...240V, 1NO + 1NC | Mayer Electric

SQUARE D . SQDZB5AW0M15

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete body/contact assembly and light block, Harmony XB5, XB4, white, with body/fixing collar, universal LED, 230...240V, 1NO + 1NC | Mayer Electric
UPC3389110909197
Weight0.042
WeightUnitkg
Weight_AttribNet Weight
height42.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-Complete-body-contact-assembly-and-light-block-Harmony-XB5-XB4-white-with-body-fixing-collar-with-integral-LED-230-240-V-1NO1NC-3389110909197
jsonUrlData2341d6bfb-a878-4c74-92d0-aeea00590f4c
length32.0
length_AttribCad Overall Depth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDZB5AW0M15
qtyInStock0
tierPrice163.9
width30.0
width_AttribCad Overall Width
Range Of ProductHarmony XB5
Light Sourceuniversal LED
Light Block Supplydirect
Product Or Component Typecomplete body/contact assembly and light block
Fixing Collar Materialplastic
Head Type, Contacts Usagestandard
Contacts Type And Composition1 NO + 1 NC
Contact Operationslow-break
Light Source Colourwhite
Device Short NameZB5
Bulb Baseintegral LED
Warranty18 months
Terminals Description Iso N?1(11-12)NC || (13-14)NO
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force2 N NC changing electrical state || 2.3 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.042 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Cad Overall Height42 mm
Current Consumption14 mA
Device Presentationbasic sub-assemblies
Service Life100000 h at rated voltage and 25 ?C
Surge Withstand1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Signalling Typesteady
Operating Torque0.05 N.m NO changing electrical state
Supply Voltage Limits195-264 V AC
Mechanical Durability5000000 cycles
Tightening Torque0.8-1.2 N.m EN 60947-1
Cad Overall Width30 mm
Cad Overall Depth32 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
[Us] Rated Supply Voltage230...240 V AC 50/60 Hz
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1710010EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || GL || DNV || BV || LROS (Lloyds register of shipping) || CSA
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Electrical Shock Protection Classclass II IEC 60536
Protective TreatmentTH
Resistance To Fast Transients2 kV IEC 61000-4-4
Electromagnetic Emissionclass B IEC 55011

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZB5AW0M15111 @ $63.90
