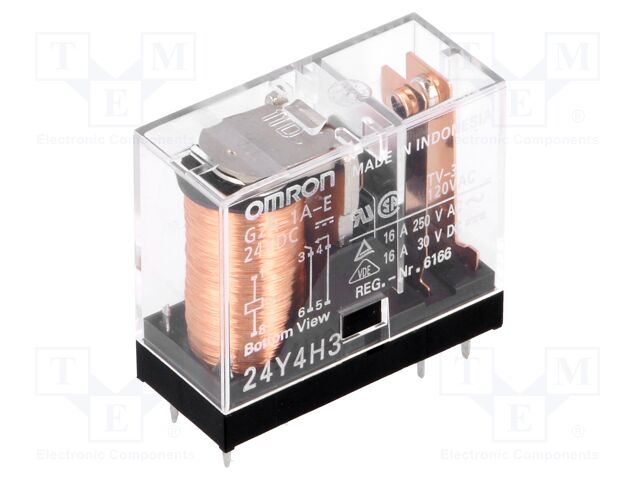

OMRON OCB G2R-1A-E 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A
OMRON OCB G2R-1A-E 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1A-E 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | ac4563365728644eaa2d67a3d28188bc. |
| jsonUrlData2 | 58557f8026a9d181c4a8 |
| keywords | OMRON OCB, G2R-1A-E 24VDC, G2R-1A-E-24DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2R-1A-E 24VDC |
| qtyInStock | 802 |
| SKU | G2R-1A-E-24DC |
| snippet | OMRON OCB G2R-1A-E 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.21 |
| tierPrice2 | 2.93 |
| tierPrice3 | 2.2 |
| tierPrice4 | 2.08 |
| tierPrice5 | 1.89 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 24V DC |
| Contact current max | 16A |
| AC contacts rating @R | 16A / 250V AC |
| DC contacts rating @R | 16A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Mechanical durability | 20000000 cycles |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 5mm |
| Coil current | 21.8mA |
| Enclosure description | standard seal |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1A-E-24DC | 1 | 802 | 1 | 1 @ $3.21, 5 @ $2.93, 25 @ $2.20, 100 @ $2.08, 500 @ $1.89 |
