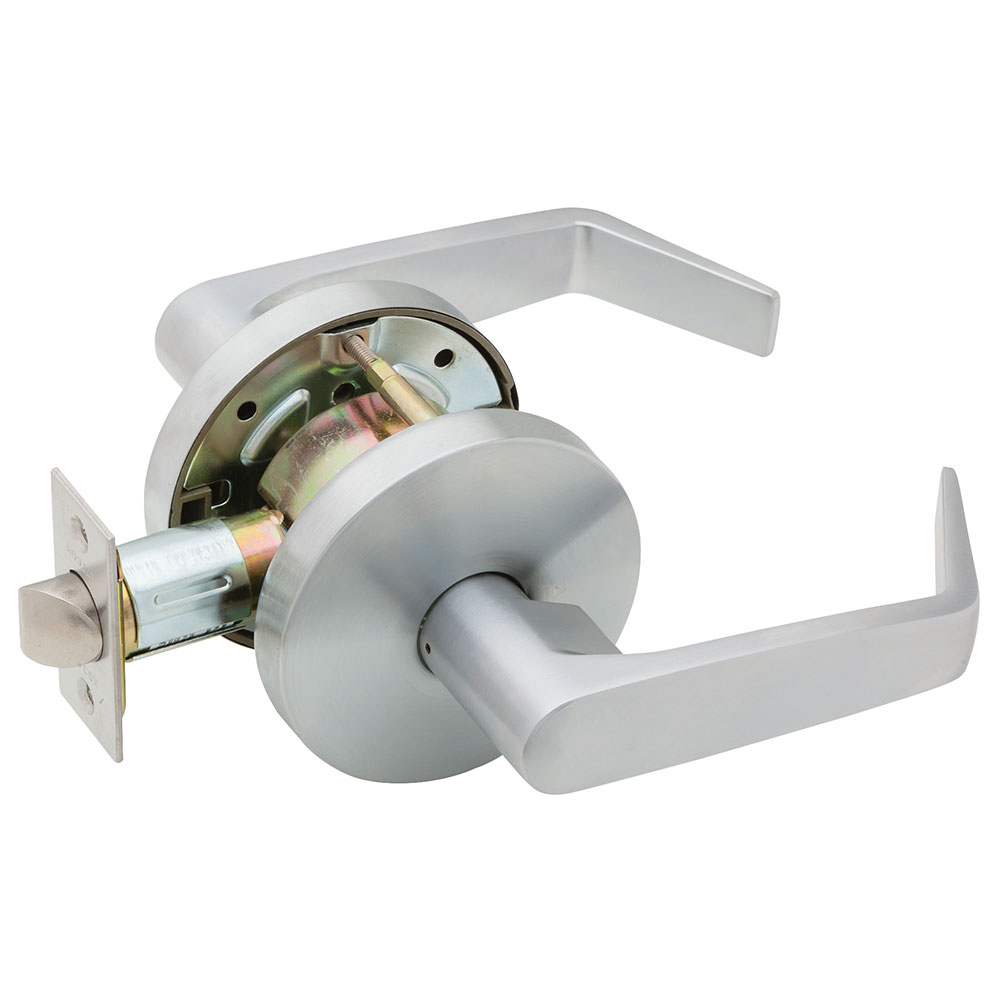

Falcon W101S SRD 626 W Series Passage Lock, Satin Chrome

W SeriesGrade 2, medium-duty cylindrical lever and knob locks Designed to offer more functions and finish options than other grade 2 locks, W Series has what you need at the right price. With seven popular lever styles along with two knob styles and your choice of rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as w

Falcon . W101S SRD 626

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFalcon
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameFalcon W101S SRD 626 W Series Passage Lock, Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
diameter, height, width2.5625
height_Attrib, width_AttribRose Diameter
length5.0
length_AttribLever Length-Inches
MPN, SKUW101S SRD 626
qtyInStock-2
qtySourceFieldMap
tierPrice186.62
Package Volume0
Function101-Passage
GradeANSI/BHMA Grade 2
Special MarksComplies with ADA accessibility guidelines
Color Code626/US26D
Rose/Escutcheon Design2-9/16 In. Diameter
Base MaterialBrass or Bronze
Lever/Knob DesignD - Dane
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Lever StyleDAN-Dane
Rose/Escutcheon TrimSR-Small Rose
Product TypeCylindrical Lock
Projection2.5000
Lever Length5.0000
Door Thickness1 3/8" - 1 3/4"
Latch Number30-206
Strike Number30-148
Bore Size2.1250
ADA ApprovedFalse
ApplicationRetail; Multi Family; Mix Use; Government; Industrial
Warranty10 year limited
Handle TypeLever
Rose Diameter2-9/16 Inch
Latch Throw1/2 Inch
ANSI FunctionF75
Strike TypeANSI Curved Lip
ADA CompliantYES
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2; UL Listed
Function DescriptionLatch retracted by knobs/levers at all times
Front Size1-1/8" x 2-1/4"
Function FamilyPassage/Hall/Closet
Strike Lip1-5/16 Inch
Product Projection2-1/2 Inch
Trim MaterialSolid Pressure Cast Zinc (Lever)
FeaturesHeavy Duty Torsion Springs to Prevent Lever Sag; does Not Require Field Disassembly for Re Handing Allowing for Easy Installation and Maintenance
Latch TypeSpring Latch
Strike Size1-1/4" x 4-7/8"
Manufacturer ParentAllegion
Lever Length-Inches5 Inch
Latch CornerSquare
Knob/Lever Size4-5/8 Inch
Latch Bolt MaterialStainless Steel
Lever Style FamilyStraight Return Lever
Sub-SeriesW101S-SRD-626

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareW101S SRD 6261-211 @ $86.62
absupply.netFALCON CMP. W101S SRD 626111 @ $87.58
ZoroG8061327421-211 @ $86.28
thebuilderssupply.comFAL_W101SSRD62618211 @ $64.56
