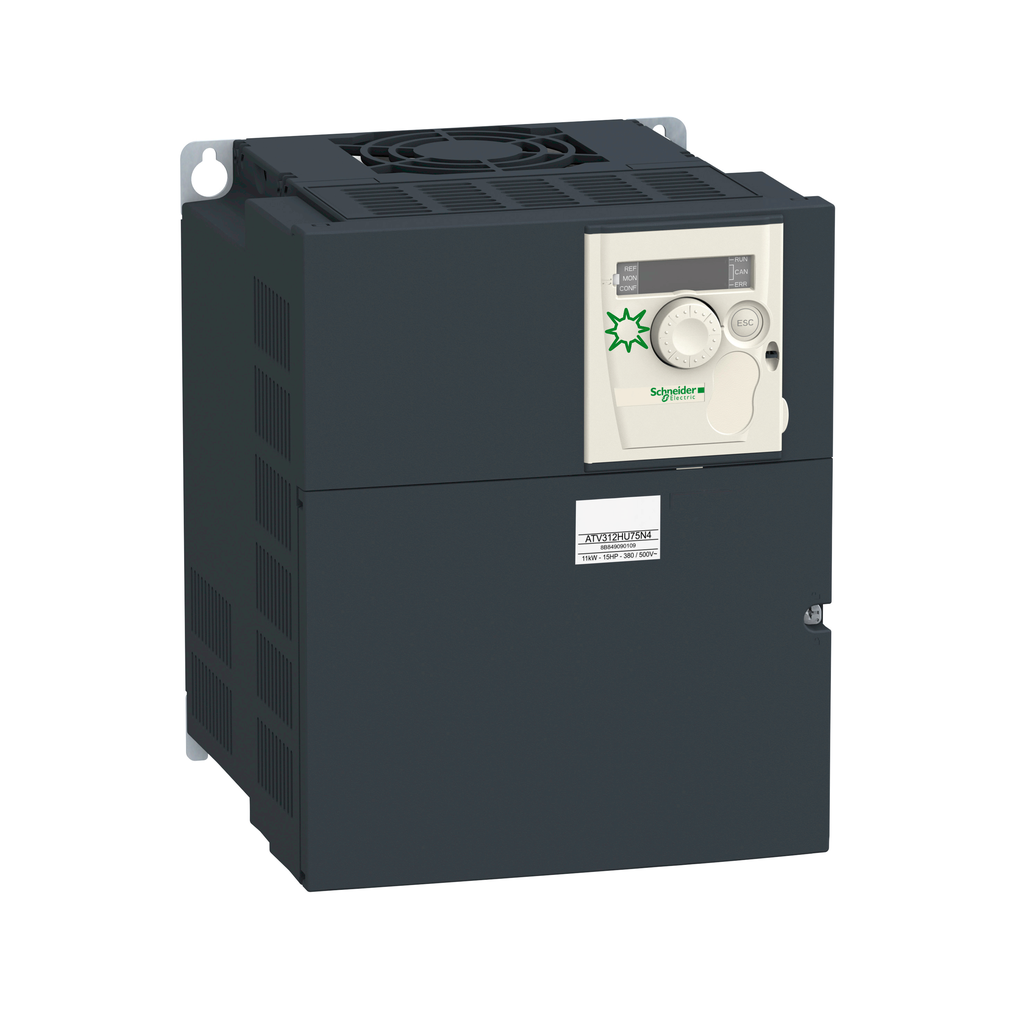

variable speed drive ATV312 - 5.5kW - 15kVA - 232W - 380..500 V- 3-phase supply | Mayer Electric

SQUARE D . SQDATV312HU55N4412

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Namevariable speed drive ATV312 - 5.5kW - 15kVA - 232W - 380..500 V- 3-phase supply | Mayer Electric
UPC3606480508646
Weight6.5
WeightUnitkg
Weight_AttribNet Weight
depth, length172.0
height232.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-variable-speed-drive-ATV312-5-5kW-15kVA-232W-380-500-V-3-phase-supply-3606480508646
jsonUrlData29af4a031-9837-4cf6-8e0a-aeea0054c7bb
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDATV312HU55N4412
qtyInStock0
tierPrice11710.4
width180.0
width_AttribWidth
Product Destinationasynchronous motors
Range Of ProductAltivar 312 Solar
Product Or Component Typevariable speed drive
Product Specific Applicationpumping station with photovoltaic arrays
Assembly Stylewith heat sink
Device Short NameATV312
Warranty18 months
Prospective Line Isc1 kA
Network Frequency47.5...63 Hz
Height232 mm
Acceleration And Deceleration Rampslinear adjustable separately from 0.1 to 999.9 s || S, U or customized
Line Current16.5 A 500 V || 21.9 A 380 V, Isc = 1 kA
Time Constant5 ms for reference change
Electrical ConnectionAl1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5-2.5 mm? AWG 14 || L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 2.5-2.5 mm? AWG 14
StandardsIEC 61800-3 || IEC 61800-5-1
Speed Drive Output Frequency0.5-500 Hz
Discrete Output Typeconfigurable relay logic R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles || configurable relay logic R2A, R2B) NC - 100000 cycles
Transmission FrameRTU
Asynchronous Motor Control Profile : factory setenergy saving mode
Analogue Output TypeAOC configurable current 0...20 mA 800 Ohm 8 bits || AOV configurable voltage 0...10 V 470 Ohm 8 bits
Transient Overtorque150-170 % of nominal motor torque
Insulation Resistance>= 500 mOhm 500 V DC for 1 minute
MarkingCE
Dielectric Strength2410 V DC between earth and power terminals || 3400 V AC between control and power terminals
Response TimeAOV, AOC 8 ms analog || R1A, R1B, R1C, R2A, R2B 8 ms discrete
Motor Power Kw5.5 kW
Phase3 phase
Power Dissipation In W232 W at nominal load
Net Weight6.5 kg
Frequency Resolutionanalog input 0.1...100 Hz || display unit 0.1 Hz
Connector Type1 RJ45 Modbus/CANopen
Switching Frequency2...16 kHz adjustable
Maximum Transient Current21.5 A 60 s
Number Of Drive127 CANopen || 31 Modbus
Analogue Input Number3
Motor Slip Compensationsuppressable || automatic whatever the load || adjustable
Discrete Output Number, Analogue Output Number, Pollution Degree2
[Us] Rated Supply Voltage380...500 V - 5...5 %
Discrete Input TypeLI1...LI6) programmable 24 V, 0-100 mA PLC 3500 Ohm
Communication Port ProtocolCANopen || Modbus
Regulation Loopfrequency PI regulator
Supply Voltage Limits323-550 V
Minimum Switching CurrentR1-R2 10 mA 5 V DC
Physical InterfaceRS485 multidrop serial link
Transmission Rate10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen || 4800, 9600 or 19200 bps Modbus
Insulationelectrical between power and control
Speed Range1-50
Discrete Input Number6
Local Signallingfor drive voltage 1 LED (red) || for CANopen bus status four 7-segment display units
Linearity Error+/- 0.2 % output
Number Of Addresses1-127 CANopen || 1-247 Modbus
Apparent Power15 kVA
Nominal Switching Frequency4 kHz
Emc Filterintegrated
Width180 mm
Analogue Input TypeAI1 configurable voltage 0...10 V 30 V max 30000 Ohm || AI2 configurable voltage +/- 10 V 30 V max 30000 Ohm || AI3 configurable current 0...20 mA 250 Ohm
Braking To Standstillby DC injection
Depth172 mm
Tightening TorqueAl1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 0.6-0.6 N.m || L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- 0.8-0.8 N.m
Continuous Output Current14.3 A 4 kHz
Maximum Horse Power Rating7.5 hp
Supply Frequency50...60 Hz - 5...5 %
Option Cardcommunication card CANopen daisy chain || communication card DeviceNet || communication card Fipio || communication card Modbus TCP || communication card Profibus DP
Sampling DurationAI1, AI2, AI3 8 ms analog || LI1...LI6 4 ms discrete
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP110706EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI100203EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-10-50 ?C without derating with protective cover on top of the drive) || -10-60 ?C with derating factor without protective cover on top of the drive)
Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm 3-13 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-25-70 ?C
Relative Humidity5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Ip Degree Of ProtectionIP20 without cover plate
Operating Positionvertical +/- 10 degree
Protective TreatmentTC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDATV312HU55N4412111 @ $1710.40
