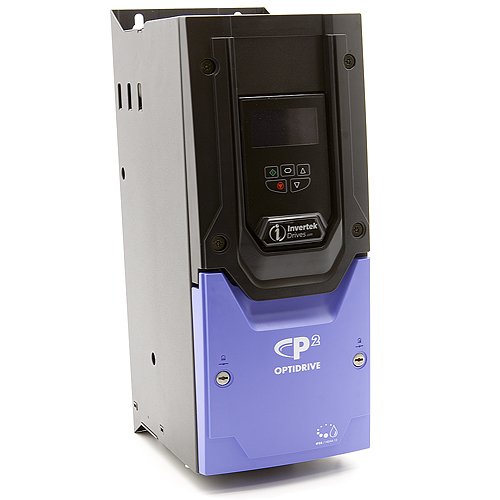

Invertek ODP-2-62050-3HF4N-MN 37kW 50Hp 150A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

The ODP-2-62050-3HF4N-MN is produced by Invertek and is described as a Invertek ODP-2-62050-3HF4N-MN 37kW 50Hp 150A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

Invertek . ODP-2-62050-3HF4N-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-62050-3HF4N-MN 37kW 50Hp 150A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD
Voltage, Input voltage200 / 240V
Weight58
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length13.0
height34.1
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-62050-3HF4N-MN
qtyInStock0
SKU6092954
tierPrice16617.52
width17.716535433070867
width_AttribPackaged dimensions width
Frame, Drive dimensions size6
Height34.1 in
Depth13 in
Rated power37 kW/50 HP
Phase, Input phases3
Width (in)13
Supply fuse or MCB (type B)200 A
Packaged dimensions depth, Packaged dimensions width450 mm (17.72 in)
Supply current continuous139.7 A
Drive dimensions weight55 kg (121.25 lbs)
Max motor cable size, Max supply cable size150 mm? (0.23 in?)
Brake transistorInternal
Supply voltage200-240 V
Output current150 A
Drive dimensions fixings4 x M10
Drive dimensions depth332 mm (13.07 in)
Packaged dimensions weight58 kg (127.87 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height865 mm (34.06 in)
EMC filterInternal EMC
DisplayTFT display
Packaged dimensions height980 mm (38.58 in)
Motor output rating37 kW (50 HP)
Drive dimensions width330 mm (12.99 in)
PCB coatingStandard
EnclosureIP55

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092954111 @ $6617.52
driveswarehouse.comODP-2-62050-3HF4N-MN1-211 @ $6617.52
