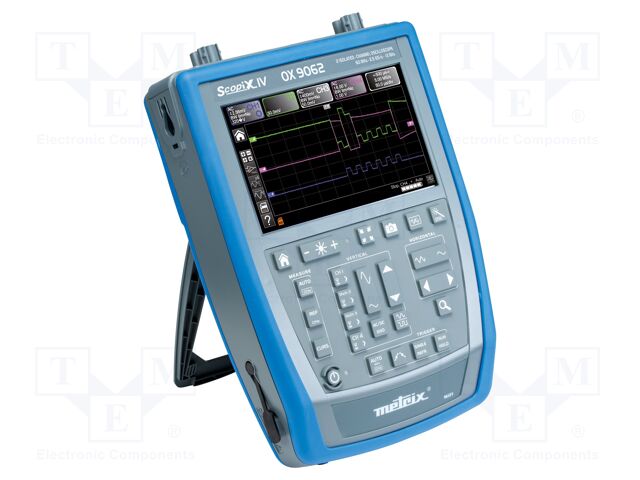

METRIX OX9062 | Handheld oscilloscope; 60MHz; colour,LCD TFT 7"; Ch: 2; ?5.85ns
METRIX OX9062 | Handheld oscilloscope; 60MHz; colour,LCD TFT 7"; Ch: 2; ?5.85n
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | METRIX |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Instruments |
| CategoryL3 | Oscilloscopes and Scopemeters |
| CategoryL4 | Portable Oscilloscopes, Scopemeters |
| Extra Product Name | METRIX OX9062 | Handheld oscilloscope; 60MHz; colour,LCD TFT 7"; Ch: 2; ?5.85ns |
| atoms, moq, multiple | 1 |
| jsonUrlData | cc4f3b228d8ce56f6a885c06797b027b. |
| jsonUrlData2 | 394949498bd7ded1b218 |
| keywords | METRIX, OX9062 |
| MPN, SKU | OX9062 |
| qtyInStock | 0 |
| snippet | METRIX OX9062 | Handheld oscilloscope; 60MHz; colour,LCD TFT 7"; Ch: 2; ?5.85n |
| Type of oscilloscope | handheld oscilloscope |
| Band | 60MHz |
| Kind of display used | colour, |
| Number of channels | 2 |
| Measurement | active power, |
| Sampling | 2,5Gsps, |
| Memory record length | 100kpts/ch |
| Time base | 1n...200s/div |
| Vertical resolution | 12bit |
| Max input voltage | 0.6/1kV |
| Display resolution | 800x480 |
| Trigger | counting, |
| Diode test | 3.3V |
| Input coupling | AC, DC, GND |
| Trigger modes | auto level 50%, |
| Trigger source | CH1, |
| Rise time | ?5.85ns |
| Input sensitivity | 2.5mV/div...200V/div |
| Trigger coupling | AC, |
| Input impedance | 1M?/12pF |
| Additional functions | multimeter |
| Dimensions | 292.5x210.6x66.2mm |
| Conform to the norm | CAT III 600V |
| IP rating | IP54 |
| Storage temperature | -20...70?C |
| Optional equipment | ProbiX accessories |
| Manufacturer series | ScopiX IV |
| Software | dedicated mobile app |
| Touchpad, Illumination | yes |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| OX9062 | 1 | 1 | |||
| RS Delivers | 173-6230 | 1 | 1 | 1 @ $2134.42 |
