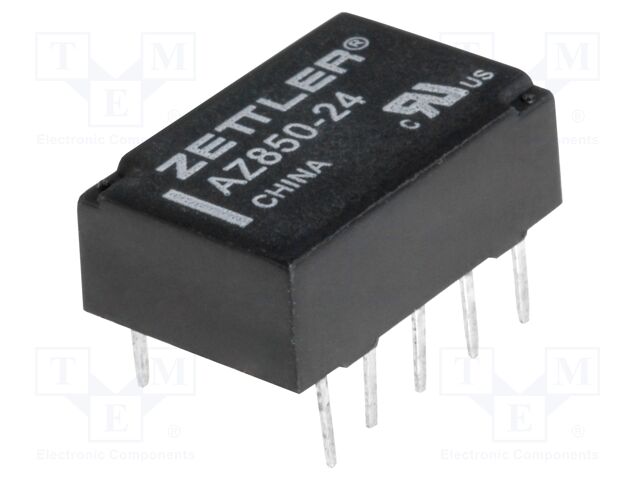

ZETTLER AZ850-24 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PCB
ZETTLER AZ850-24 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ850-24 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 2e1ccd72f496979288f4826eb0fc01b4. |
| jsonUrlData2 | 643424d5f88fd61b2daa |
| keywords | ZETTLER, AZ850-24 |
| MPN, SKU | AZ850-24 |
| qtyInStock | 2370 |
| snippet | ZETTLER AZ850-24 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.74 |
| tierPrice2 | 1.5 |
| tierPrice3 | 1.36 |
| tierPrice4 | 1.13 |
| tierPrice5 | 1.01 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 1A |
| AC contacts rating @R | 0.5A / 125V AC |
| DC contacts rating @R | 1A / 30V DC |
| Switched voltage | max. 220V DC, |
| Relay variant | subminiature |
| Mounting | PCB |
| Coil resistance | 2.88k? |
| Coil voltage min | 16.8V DC |
| Coil voltage max | 48V DC |
| Operate time | 2ms |
| Body dimensions | 14x9x5mm |
| Release time | 1ms |
| Coil power consumption | 142mW |
| Mechanical durability | 100000000 cycles |
| Operating temperature | -55...90?C |
| Relay series | AZ850 |
| Contact resistance | 70m? |
| Case | DIP10 |
| Switching capacity | 30W, |
| Soldering temperature | 250?C |
| Terminal pitch | 2.54mm |
| Design | single coil |
| Test voltage | 1.5kV |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ850-24 | 1 | 2370 | 1 | 1 @ $1.74, 5 @ $1.50, 25 @ $1.36, 100 @ $1.13, 500 @ $1.01 |
