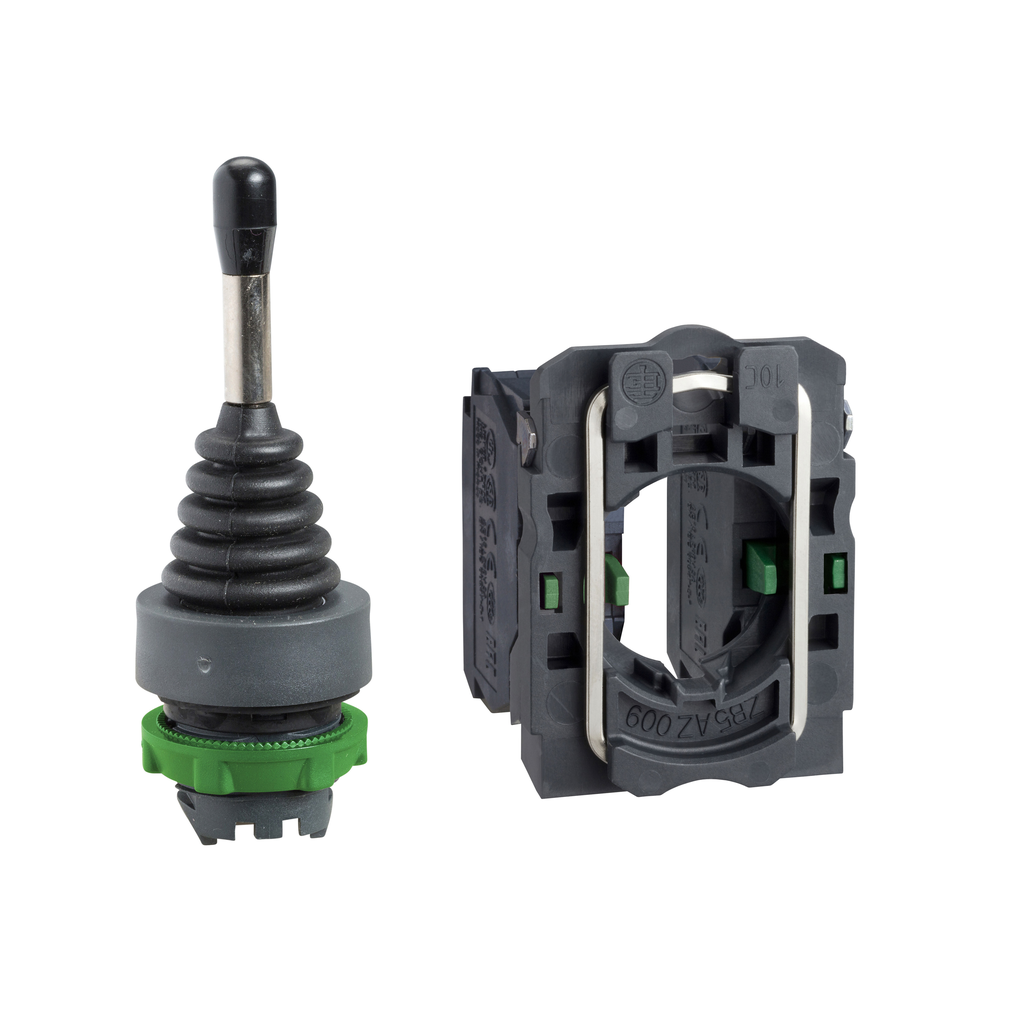

Harmony XB5, Joystick controller, ?22, 2-direction, spring return, 1 NO per direction | Mayer Electric

SQUARE D . SQDXD5PA22

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB5, Joystick controller, ?22, 2-direction, spring return, 1 NO per direction | Mayer Electric
UPC3389110904291
depth, length108.0
height47.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-XB5-Joystick-controller-Ø22-2-direction-spring-return-1-NO-per-direction-3389110904291
length_AttribDepth
moq, multiple, Sale Per Indivisible Quantity1
MPN, SKUSQDXD5PA22
qtyInStock0
width30.0
width_AttribWidth
Range Of ProductHarmony XB5
Mounting Diameter22 mm
Type Of Operatorto 0 position spring return
Product Or Component Typejoystick controller
Shape Of Signaling Unit Headround
Operator Direction Information2 directions
Fixing Collar Material, Bezel Materialplastic
Operator Profile54 mm long operating shaft
Operator Position Information3 positions
Device Short NameXD5
Warranty18 months
Contacts Usagestandard
Height47 mm
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
Contacts Type And Composition1 NO
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Contact Operationslow-break
Mechanical Durability1000000 cycles
Notch Per Direction1-1
Width30 mm
Depth108 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP111026EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsDNV || CSA || LROS (Lloyds register of shipping) || BV || GL || UL Listed
Ik Degree Of ProtectionIK03 IEC 50102
Ambient Air Temperature For Operation-25-70 ?C
StandardsEN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Ambient Air Temperature For Storage-40-70 ?C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Electrical Shock Protection Classclass II IEC 60536
Protective TreatmentTH
