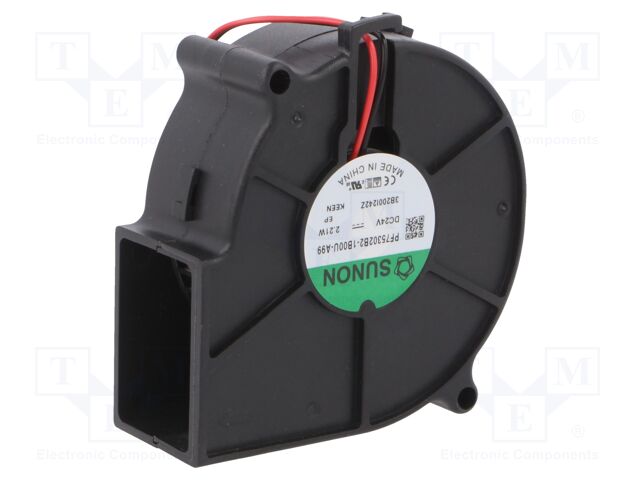

SUNON PF75302B2-1B00U-A99 | Fan: DC; blower; 24VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; 3000rpm
SUNON PF75302B2-1B00U-A99 | Fan: DC; blower; 24VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; 3000rp
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SUNON |
|---|---|
| CategoryL1 | Fans, Cooling and Heating Systems |
| CategoryL2 | DC Fans |
| CategoryL3 | DC24V Fans |
| DimensionUnit | m |
| Extra Product Name | SUNON PF75302B2-1B00U-A99 | Fan: DC; blower; 24VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; 3000rpm |
| Weight | 88 |
| WeightUnit | g |
| Weight_Attrib | Weight |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 00ec8b008ea32de4d9fbea10b3330272.5 |
| jsonUrlData2 | c8ad8f7d3b67aef45a39 |
| keywords | SUNON, PF75302B2-1B00U-A99, PF75302B2-A99-B, Fans, Cooling and Heating Systems, DC Fans, DC24V Fans |
| length | 0.295 |
| length_Attrib | Cable length |
| MPN | PF75302B2-1B00U-A99 |
| qtyInStock | 0 |
| SKU | PF75302B2-A99-B |
| snippet | SUNON PF75302B2-1B00U-A99 | Fan: DC; blower; 24VDC; 75x75x30mm; 23.44m3/h; 38.6dBA; 3000rp |
| tierMinQty2 | 10 |
| tierMinQty3 | 50 |
| tierPrice1 | 16.85 |
| tierPrice2 | 15.25 |
| tierPrice3 | 13.65 |
| Type of fan | DC |
| Kind of fan | blower |
| Operating voltage | 10...27.6V |
| Fan dimensions | 75x75x30mm |
| Power consumption | 1.92W |
| Current rating | 80mA |
| Fan efficiency | 23.44m |
| Noise level | 38.6dBA |
| Kind of Bearing | ball bearing |
| Rotational rate/speed | 3000rpm |
| Current and power consumption tolerance | ?15% |
| Min insulation resistance | 10M? |
| Impeller material, Enclosure material | plastic |
| Insulation class | A |
| Leads | 2 leads |
| Operating temperature | -10...70?C |
| Cable length | 0.295m |
| Flammability rating | UL94V-0 |
| Additional functions | Autorestart |
| Fan motor | brushless DC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PF75302B2-A99-B | 1 | 1 | 1 @ $16.85, 10 @ $15.25, 50 @ $13.65 |
