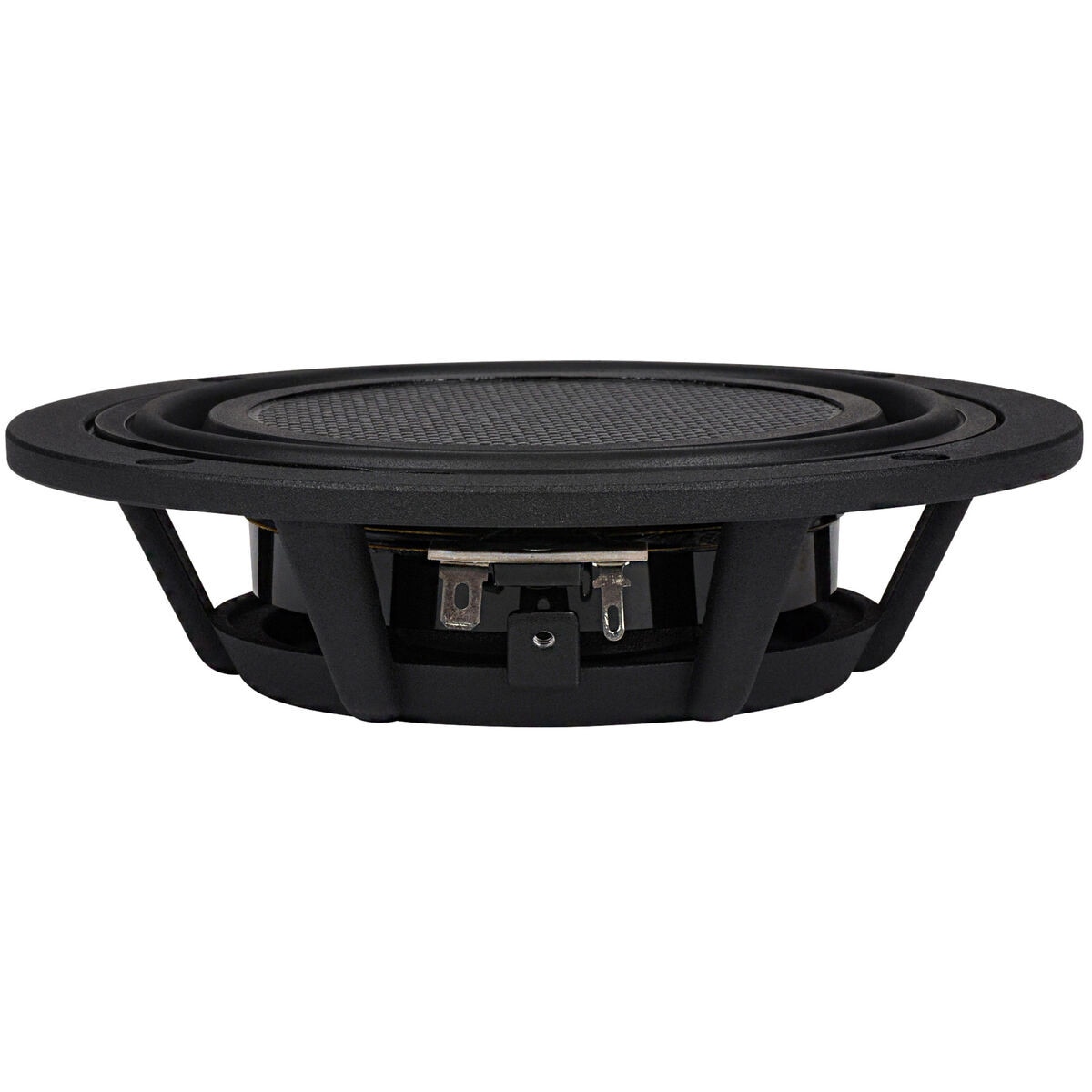

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms. Part Number: 295-255 by Dayton Audio.

Dayton Audio . LW150-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio LW150-4 6" Low Profile Woofer 4 Ohms
UPC848791001864
Weight1.15
WeightUnitlbs
depth, length1.5
diameter, height, width6.0
height_Attrib, width_AttribNominal Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelLW150-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-255
snippetDayton Audio LW150-4 6" Low Profile Woofer 4 Ohms. Part Number: 295-255 by Dayton Audio.
tierMinQty2, # Mounting Holes4
tierPrice149.98
tierPrice244.98
Unit of MeasureEach
Nominal Diameter, Overall Outside Diameter6"
Bolt Circle Diameter5.5
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance4?
Frequency Response60 to 1,800Hz
Sensitivity86.1dB 2.83V/1m
Voice Coil Diameter1.25"
Resonant Frequency (Fs)62.6Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.86mH
Mechanical Q (Qms)6.01
Electromagnetic Q (Qes)0.72
Total Q (Qts)0.64
Compliance Equivalent Volume (Vas)0.12ft?
Mechanical Compliance of Suspension (Cms)0.296mm/N
BL Product (BL)6.51T?m
Diaphragm Mass Inc Airload (Mms)21.8g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)91cm?
Cone MaterialCarbon Fiber Composite
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Baffle Cutout Diameter5.125"
Depth1.5"
Sealed Volume0.16ft?
Sealed F390Hz
Vented Volume0.33ft?
Vented F340Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-2551-211 @ $49.98, 4 @ $44.98
