Where can I buy ODE-3-440300-3F42?

ODE-3-440300-3F42 is available from MRO Supply, kempstoncontrols.co.uk, driveswarehouse.com, vfds.com. See pricing comparison above.

What is the price of ODE-3-440300-3F42?

Pricing ranges from $1188.97 to $1714.29 depending on quantity and distributor.

Is ODE-3-440300-3F42 in stock?

Yes, ODE-3-440300-3F42 is currently in stock at multiple distributors with immediate availability.

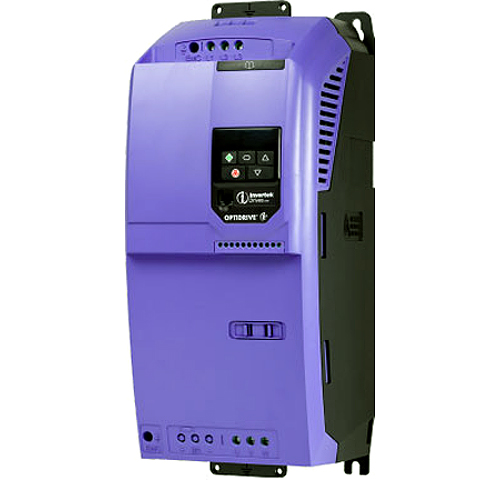

Invertek ODE-3-440300-3F42 15kW 20Hp 30A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive E3 Economy VFD

Name: Invertek ODE-3-440300-3F42 15kW 20Hp 30A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive E3 Economy VFD
Brand: Invertek
Price: 1536.00 USD
Availability: OutOfStock

The ODE-3-440300-3F42 is produced by Invertek and is described as a Invertek ODE-3-440300-3F42 15kW 20Hp 30A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive E3 Economy VFD

Invertek . ODE-3-440300-3F42

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Invertek
CategoryL1	Automation
CategoryL2	Speed Controllers & VFDs
CategoryL3	AC Vector Drives
CategoryL4	Three Phase
DimensionUnit	inch
Extra Product Name	Invertek ODE-3-440300-3F42 15kW 20Hp 30A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive E3 Economy VFD
Voltage, Input voltage	380/480V
Weight	10.5
WeightUnit	lbs
Weight_Attrib	Packaged dimensions weight
depth, length	8.3
height	16.5
height_Attrib	Height
length_Attrib	Depth
moq, multiple, tierMinQty1	1
MPN	ODE-3-440300-3F42
qtyInStock	0
SKU	6092690
snippet	The ODE-3-440300-3F42 is produced by Invertek and is described as a Invertek ODE-3-440300-3F42 15kW 20Hp 30A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive E3 Economy VFD
tierPrice1	1536.00
width	11.10236220472441
width_Attrib	Packaged dimensions width
Frame, Drive dimensions size	4
Height	16.5 in
Depth	8.3 in
Rated power	15 kW/20 HP
Phase, Input phases	3
Width (in)	6.7
Supply fuse or MCB (type B)	40 A
Packaged dimensions depth	560 mm (22.05 in)
Supply current continuous	34.2 A
Drive dimensions weight	9.1 kg (20.06 lbs)
Max motor cable size, Max supply cable size	16 mm? (0.02 in?)
Brake transistor	Internal brake transistor
Supply voltage	380-480 V
Output current	30 A
Drive dimensions fixings	4 x M8
Drive dimensions depth	212 mm (8.35 in)
Packaged dimensions weight	10.5 kg (23.15 lbs)
Max motor cable length	100 m (328 ft)
Output voltage	0 - supply voltage
Drive dimensions height	420 mm (16.54 in)
EMC filter	Internal EMC filter
Display	LED
Packaged dimensions height	340 mm (13.39 in)
Motor output rating	15 kW (20 HP)
Drive dimensions width	171 mm (6.73 in)
Enclosure	IP20
Packaged dimensions width	282 mm (11.1 in)

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
MRO Supply	6092690	1		1	1 @ $1536.00
kempstoncontrols.co.uk	ODE-3-440300-3F42	1		1	1 @ $1188.97
driveswarehouse.com	ODE-3-440300-3F42	1	-2	1	1 @ $1536.00
vfds.com	ODE-3-440300-3F42	1		1	1 @ $1714.29
