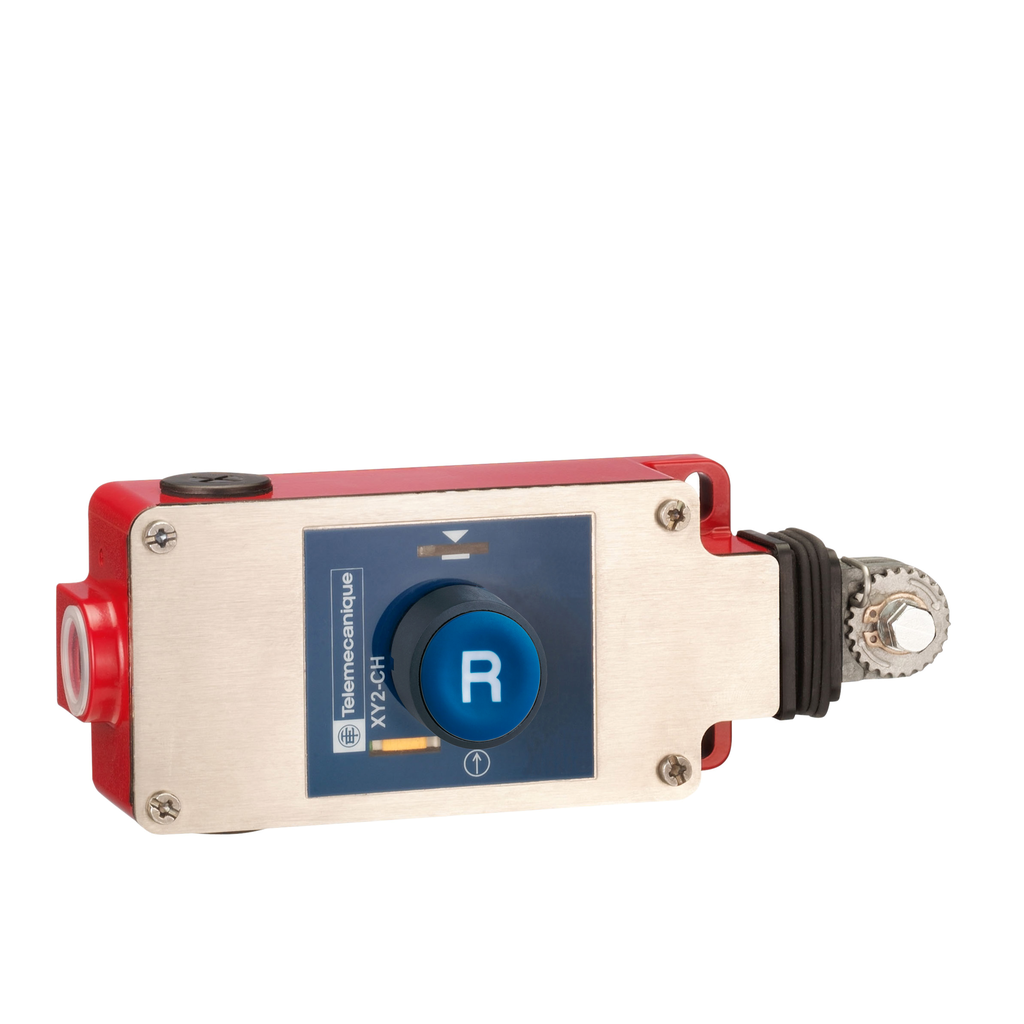

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, flush pushbutton | Mayer Electric

Mayer Electric Supply . XY2CH13150H7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NameLatching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, flush pushbutton | Mayer Electric
UPC785901722120
Weight0.865
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-E-stop-rope-pull-switch-XY2CH-1NC1NO-flush-pushbutton-785901722120
jsonUrlData202af99c6-a5a4-4b5a-87a7-abb200c9e4a1
length30.0
length_AttribTrigger Cable Maximum Length
moq, multiple, tierMinQty1, Number Of Cables1
MPNXY2CH13150H7
qtyInStock0
SKUSQDXY2CH13150H7
tierPrice1392.45
Housing Colourred RAL 3000
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Product Or Component Typelatching emergency stop rope pull switch
Device Short Name, Compatibility CodeXY2CH
Warranty18 months
Trigger Cable Maximum Length30 m
Connections - Terminalsscrew clamp terminal, 1 x 0.5...2 x 1.5 mm?
Resetby flush push-button
Contacts Type And Composition1 NC + 1 NO
Terminals Description Iso N?1(13-14)NO || (21-22)NC
[Ui] Rated Insulation Voltage500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Contact Operationslow-break
Distance Between Cable Supports5-5 m
Mechanical Durability800000 cycles
Positive Openingwith EN/IEC 60947-5-1
Cable Entry Number3 tapped entry 1/2" NPT conduit entry
Body Materialzamak
[Ithe] Conventional Enclosed Thermal Current10 A
Trigger Cable Anchor PointRH or LH side
Safety Reliability DataB10d = 4000000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
MarkingCE
Cover Materialstainless steel
Local Signallingwithout pilot light
Net Weight0.865 kg
Tightening Torque0.8-1.2 N.m
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP111159EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-70 ?C
Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60947-5-5 || UL 508 || EN/ISO 13850 || work equipment directive 2009/104/EC || CSA C22.2 No 14 || machinery directive 2006/42/EC || EN/IEC 60947-5-1 || EN/IEC 60204-1
Product CertificationsUL category NISD emergency stop devices || CSA || CCC
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance10 gn 10-150 Hz)EN/IEC 60068-2-6
Protective TreatmentTC
Ip Degree Of ProtectionIP65 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXY2CH13150H7111 @ $392.45
