Elation Professional . EZ4

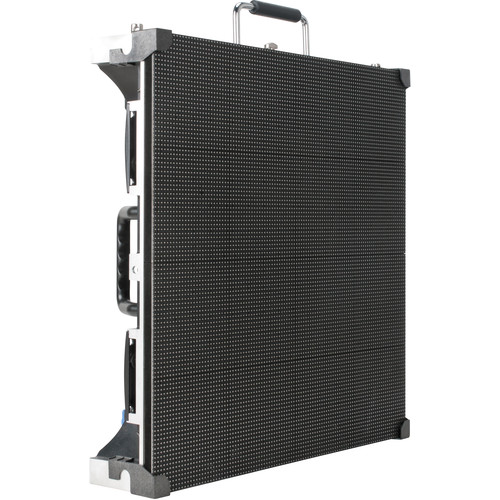

Elation EZ4 (Elation Easy 4) The EZ4 is the newest / highest resolution pixel display LED panel offering from Elation. Designed for Indoor use on installations, broadcast or corporate productions this light weight, easy to handle and transport LED video panel features all the pro-grade requirements for a high resolution display while also delivering modular rigging and design options. Featuring Black face LED's for high contrast and at 1,800 nits the brightness level is enough to perform well in high ambient light conditions and the light weight design 22lbs per cabinet allows you to rig or floor mount the unit easily. IP32 Die Cast Case Modular rigging / assembly Sturdy / Light weight cabinet design Neutrik Powercon / Ethercon linking connectors Pixel Pitch 4mm Brightness 1,200 Nits (after calibration) Cabinet Size 19.7" x 19.7" x 2.9" (500mm x 500mm x 75mm) Weight 22lbs / 10kg 10,816 Pixels (104 x 104) per panel 43,264 pixel density (pixel/m2) Viewing Angle H110/V110 Contrast Ratio 1000:1 LED Type SMD 2121 Black face LED Life 50,000hrs Processing Depth 14bit Grey Scale 65,536 levels Refresh Rate 1200hz Min. Viewing Distance 10' (3M) Operating Temperature -30c to +40c Operating Humidity 10- 90% Power Supply 100-240v AC, 50.60hz - auto sensing multi-voltage Max Power 230w / Avg Power 150W cETLus and CE Pending
