Grundfos 96081046 CR 1S-17 A-FGJ-A-E-HQQE 1PH 1.5HP TEFC 60 - MROSupply.com

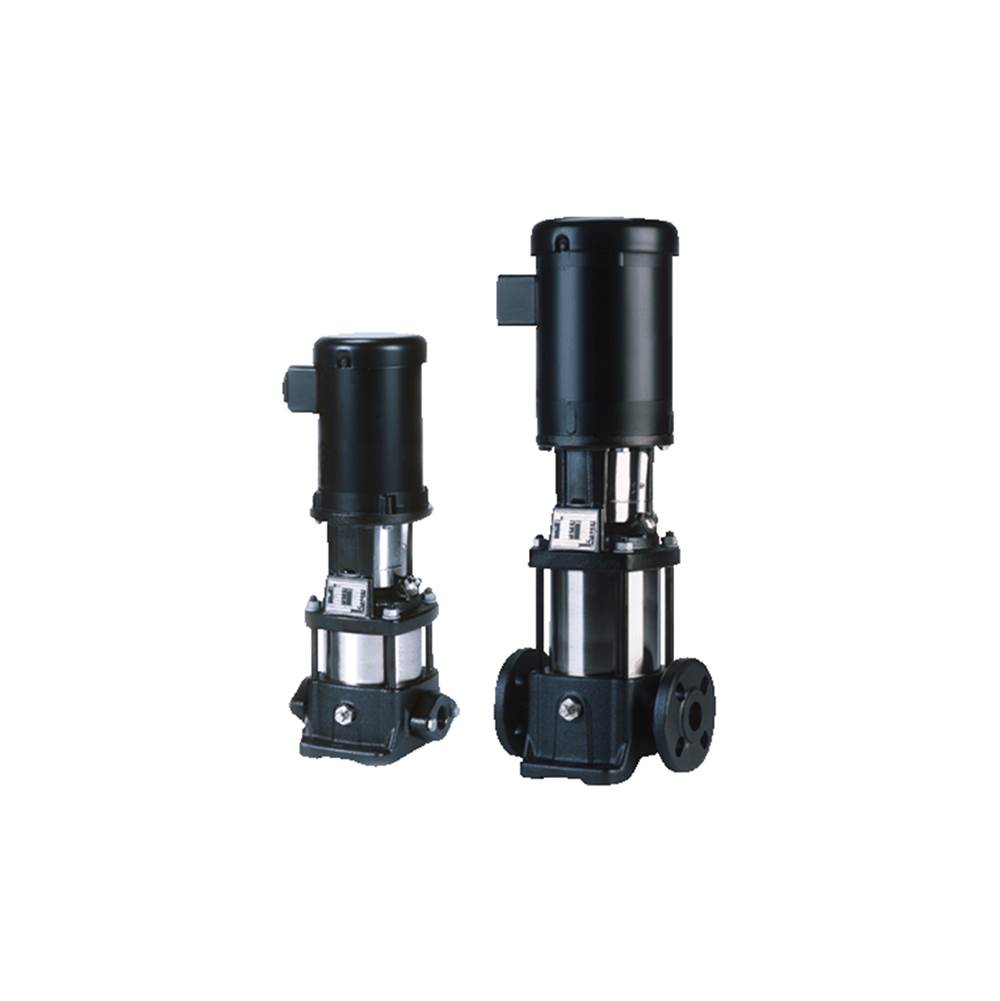

The 96081046 is produced by Grundfos and is described as a Grundfos 96081046 CR 1S-17 A-FGJ-A-E-HQQE 1PH 1.5HP TEFC 60

Grundfos . 96081046

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
Extra Product NameGrundfos 96081046 CR 1S-17 A-FGJ-A-E-HQQE 1PH 1.5HP TEFC 60 - MROSupply.com
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, Part Number, Product no, Keyword, PartNumber, Part_number, Sku96081046
qtyInStock, Number of reduced-diameter impellers0
SKU5023513
snippetThe 96081046 is produced by Grundfos and is described as a Grundfos 96081046 CR 1S-17 A-FGJ-A-E-HQQE 1PH 1.5HP TEFC 60
tierPrice12428.11
EAN, EANList, Identifier5700395155020
Product GroupBISS
Max ambient temperature (F)104
Temperature range (F)-4 - 248
Density (lb/ftBi)62.29
Rated voltage1 x 115/208-230 V
HP1.5
Max pressure (psi)363
Pipe connection1 1/4 in
Stages, Impellers17
Flange size, Flange size for motor56C
Rate flow (gpm)4.4
Selected liquid temperature (?C)20
Density998.2 kg/m?
Rated speed, Pump speed on which pump data are based3450 rpm
Power (P2) required by pump, Rated power - P21.1 kW
Mains frequency60 Hz
Pump version, Model, Material codeA
Pumped liquidWater
Product nameCR 1S-17 A-FGJ-A-E-HQQE
Pressure rating for connectionPN 25
Rated head96.9 m
Approvals for drinking waterNSF61
Insulation class (IEC 85)B
Size of outlet connection, Size of inlet connectionDN 25/32
IE efficiency71%
Temperature (?C)25 bar / -20
Max pressure at stated temp (?C)25 bar / 120
Motor no84Z04007
ApprovalsCURUS
Rated flow1.1 m?/h
Full load SF current20,4/11,3-10,2 A
Motor standardNEMA
Motor efficiency at full load71 %
BaseCast iron
Shaft seal arrangementSingle
Pump orientationVertical
Type of connectionDIN / ANSI / JIS
Maximum operating pressure (bar)25
Low NPSHN
Flange rating inlet250 lb
Connect codeFGJ
Curve tolerance2012 3B
Service factor1.30
Number of poles2
Maximum head145.6 m
BearingSIC
Liquid temperature range (?C)-20 - 120
Motor typeBALDOR
Code for shaft sealHQQE
CoolingTEFC
ImpellerStainless steel
Code for rubberE
Maximum ambient temperature (?C)40
Rated current17/9,50-8,60 A
ASIN, AsinB00LBI4ATW
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Bullet_pointBrand: Grundfos Category: HVAC Free Shipping on this item! Product Number: 96081046 U-FGJ-A-E-HQQE 1ph 1.5HP TEFC 60 96081046
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011
ClassificationId720590011
DisplayNameHVAC Equipment
FeatureBrand: Grundfos
Height192 29
IdentifierTypeEAN
IsDeadAsinTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGrundfos 96081046
Item_type_keywordindustrial-hvac-components
Linkhttps://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL.jpg
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameMECHANICAL_COMPONENTS
Product_descriptionGrundfos 96081046. U-FGJ-A-E-HQQE 1ph 1.5HP TEFC 60 96081046
Product_site_launch_date2014-06-26T21:35:12.744Z
Typeean
URLhttp://ecx.images-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg
Unitspixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Weight0.000625
Width500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5023513111 @ $2428.11
PlumbersStock423635111 @ $2241.33
AmazonTPB00LBI4ATW111 @ $3274.50
pumpproducts.com960810461(Usually Ships 7-10 Days)11 @ $3709.60
Edge Supply960810461-211 @ $3362.00
