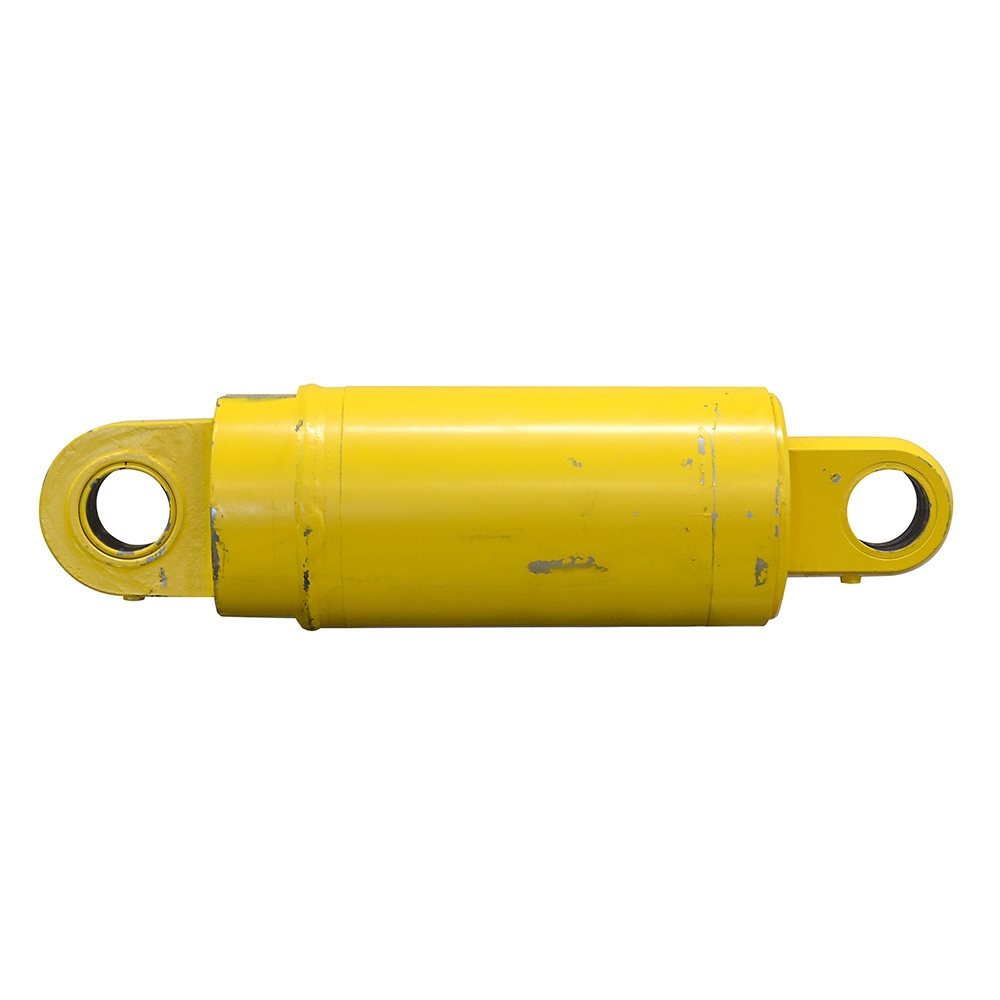

7.87(200mm)x8.66(219mm)x5.51(140mm) Double-Acting Hydraulic Cylinder Dynapac 336388899 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
7.87(200mm)x8.66(219mm)x5.51(140mm) Double-Acting Hydraulic Cylinder Dynapac 336388899, Double Acting Hydraulic Cylinders, 7.87 (200mm) x 8.663363088899,Dynapac,
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | 3363088899 |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | 7.87(200mm)x8.66(219mm)x5.51(140mm) Double-Acting Hydraulic Cylinder Dynapac 336388899 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com |
| Weight | 411 |
| WeightUnit | lbs |
| diameter, height | 5.51 |
| height_Attrib | Rod Dia. |
| length | 29.0 |
| length_Attrib | Retracted Length |
| moq, multiple, qtyInStock, tierMinQty1 | 1 |
| MPN | DYNAPAC |
| SKU | 9-20672 |
| snippet | 7.87(200mm)x8.66(219mm)x5.51(140mm) Double-Acting Hydraulic Cylinder Dynapac 336388899, Double Acting Hydraulic Cylinders, 7.87 (200mm) x 8.663363088899,Dynapac, |
| tierPrice1 | 499.95 |
| width | 2.75 |
| width_Attrib | Width |
| Bore x Stroke | 7.87"(200mm) x 8.66"(219mm) |
| Barrel Thickness | 0.75" |
| Gland Retainer | Welded in |
| Pressure | 3000 PSI |
| Rod Dia | 5.51"(140mm) |
| Ports | 4 bolt 3/4" code 6 flange size 12 |
| Retracted Length | 29" |
| Gland Face to Rod Pin Center | 4" |
| Shpg | 411 lbs. |
| Rod End, Base End | Tang |
| Width | 2.75" |
| Pin-Center-To-Tang-End | 2.72" |
| Pin Hole | 3.15"(80mm) |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 9-20672 | 1 | 1 | 1 | 1 @ $499.95 |
