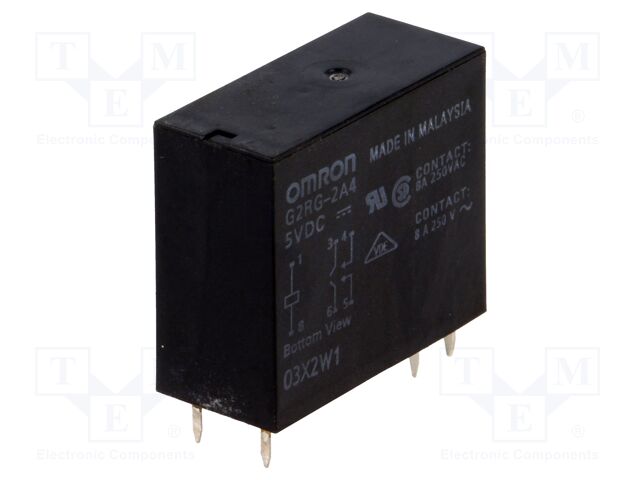

OMRON OCB G2RG-2A4 5VDC | Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A
OMRON OCB G2RG-2A4 5VDC | Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RG-2A4 5VDC | Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A |
| atoms, moq, multiple | 1 |
| jsonUrlData | c911f54d65648a72e59671801f130620. |
| jsonUrlData2 | 6701af0960964d706471 |
| keywords | OMRON OCB, G2RG-2A4 5VDC, G2RG-2A4-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2RG-2A4 5VDC |
| qtyInStock | 0 |
| SKU | G2RG-2A4-5DC |
| snippet | OMRON OCB G2RG-2A4 5VDC | Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8 |
| Type of relay | electromagnetic |
| Contacts configuration | DPST-NO |
| Rated coil voltage | 5V DC |
| Contact current max | 8A |
| AC contacts rating @R | 8A / 250V AC |
| DC contacts rating @R | 8A / 24V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 31.3? |
| Operate time | 15ms |
| Body dimensions | 29x13.5x25.5mm |
| Release time | 5ms |
| Coil power consumption | 0.8W |
| Operating temperature | -40...70?C |
| Relay series | G2RG |
| Contact resistance | 100m? |
| Terminal pitch | 5mm |
| Coil current | 160mA |
| Enclosure description | hermetic seal |
| Leads | for PCB |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2RG-2A4-5DC | 1 | 1 |
