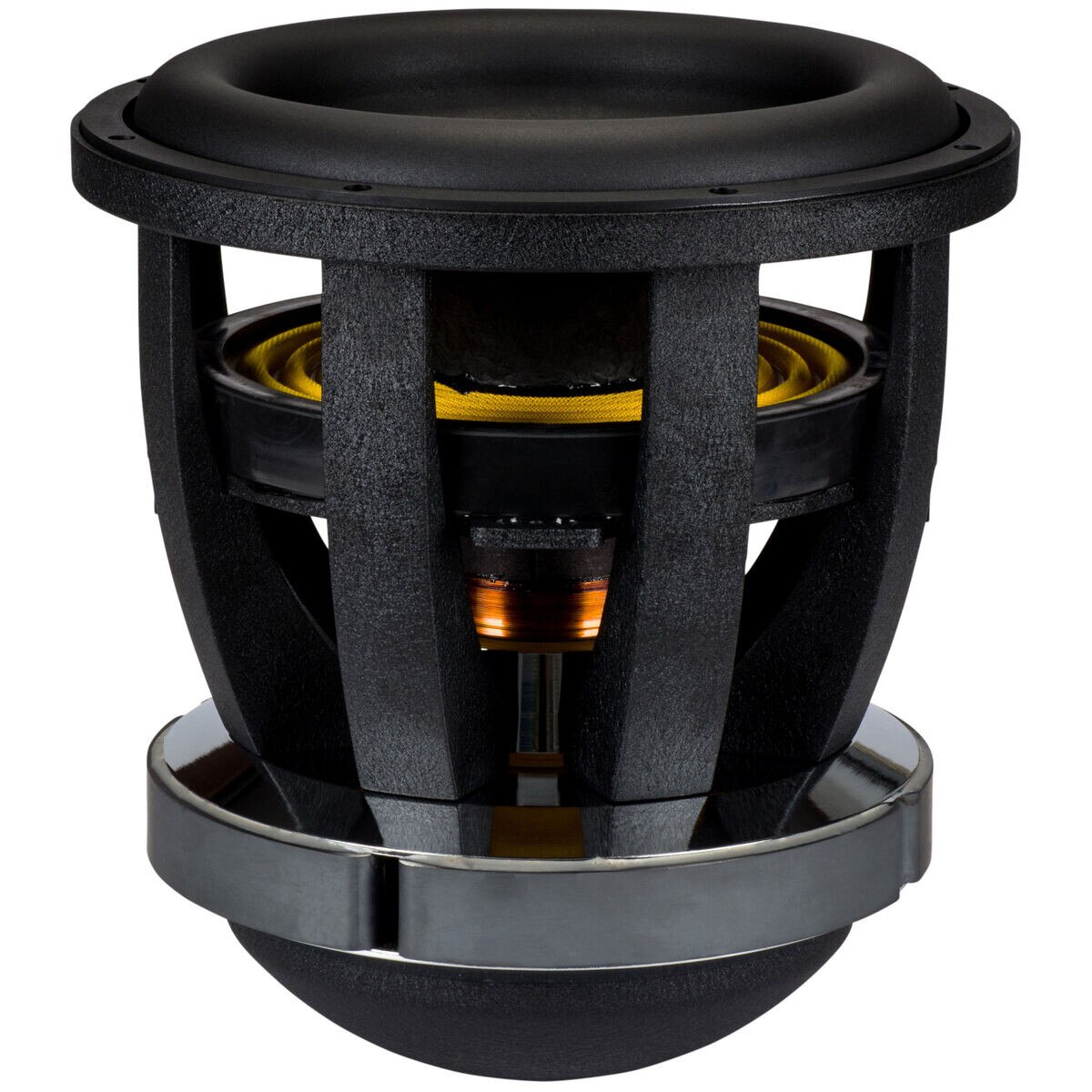

RE Audio XXX12-v2-2 12" Cast Frame DVC Subwoofer Driver 2+2 Ohm

RE Audio XXX12-v2-2 12" Cast Frame DVC Subwoofer Driver 2+2 Ohm. Part Number: 268-8150 by RE Audio.

RE Audio . XXX12-V2-2

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandRE Audio
DimensionUnitinch
Extra Product NameRE Audio XXX12-v2-2 12" Cast Frame DVC Subwoofer Driver 2+2 Ohm
UPC611892992290
Weight87.25
WeightUnitlbs
depth, length12.75
diameter, height, width13.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPNXXX12-V2-2
qtyInStock0
SKU, Part Number268-8150
snippetRE Audio XXX12-v2-2 12" Cast Frame DVC Subwoofer Driver 2+2 Ohm. Part Number: 268-8150 by RE Audio.
ModelXXX12-v2-2
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)2000 Watts
Power Handling (MAX)4000 Watts
Impedance4?
Sensitivity83.76dB 2.83V/1m
Resonant Frequency (Fs)21Hz
DC Resistance (Re)4.2?
Mechanical Q (Qms)3.29
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.404
Compliance Equivalent Volume (Vas)2.61ft?
BL Product (BL)18.16T?m
Maximum Linear Excursion (Xmax)54mm
Surface Area of Cone (Sd)480cm?
Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter13"
Baffle Cutout Diameter11.5"
Depth12.75"
# Mounting Holes8
Sealed Volume0.97ft?
Vented Volume1.95ft?
