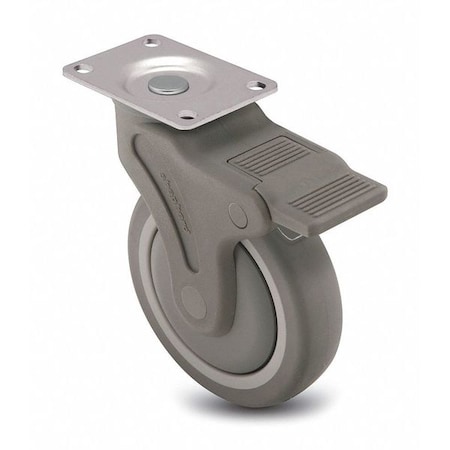

Swivel Plate Caster w/Total-Lock, 4 in., 260 lb.

Shepherd Caster . PZT40120GR-TPR33(GG)

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerShepherd Caster
DimensionUnitinch
GraingerSku3ENU6
Extra Product NameSwivel Plate Caster w/Total-Lock, 4 in., 260 lb.
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)United States
diameter, length4.0
extendedLead26
extendedQty-2
height5.4375
height_AttribOverall Height
length_AttribWheel Dia.
moq, multiple, tierMinQty11
MPNPZT40120GR-TPR33(GG)
qtyInStock0
SKUG3279236
tierPrice129.75
urlhttps://www.zoro.com/i/G3279236
width1.25
width_AttribWheel Width
Caster Brake Included, Caster Temp Range Available, Non-Marking, Thread GuardsYes
Caster Load Rating RangeLight-Duty
Caster Sub-TypeSwivel
Caster Wheel/Tread Material, Wheel/Tread MaterialThermoplastic Rubber
Load Rating260 lb
Overall Height5-7/16"
Wheel Dia4 in
Wheel Width1 1/4 in
Extended LeadNo
Plate Thickness, Caster Plate Thickness1/8"
Caster Wheel BearingsBall
Caster Core Material, Wheel Core MaterialPolyolefin
Core Color, Wheel ColorGray
Caster Plate Size, Plate Size2-5/8" x 3-3/4"
Caster Brake TypeTotal Lock Brake
Caster Raceway, Swivel Raceway TypeDouble Ball
Caster Swivel Lock Type, Swivel Lock TypeTotal Lock
IncludesThread Guards
Frame FinishEnamel
Mounting Bolt Dia5/16 in
Caster Min Temp-30 Degrees F
Caster Product GroupSwivel Caster with Total Lock
Plate Caster Bolt Hole Pattern, Caster Plate Hole PatternC
ApplicationMedical and Food Service Casters
Caster Frame Material, Frame MaterialGlass Filled Nylon
Inside Bolt Hole Spacing1 3/4 in x 2 3/4 in
Caster Max Temp180 Degrees F
StandardsICWM
Outside Bolt Hole Spacing1 3/4 in x 3 in
Caster Temp Range-30 Degrees to 180 Degrees F
ItemPlate Caster
Durometer85 Shore A
Mounting Plate Size2 5/8 in x 3 3/4 in
Load Rating RangeLight

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3279236111 @ $29.75
