KUP-11AT5-240=KU

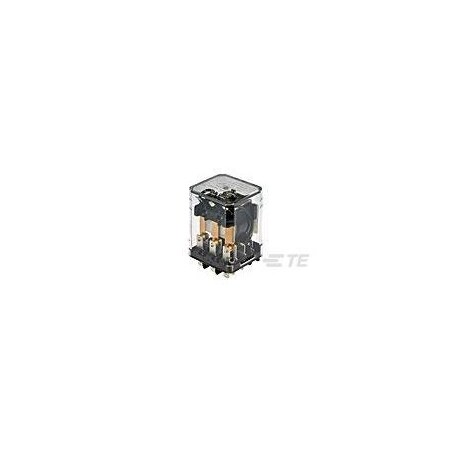

Potter-Brumfield . KUP-11AT5-240

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPotter-Brumfield
CategoryId, CategoryIdL418029
CategoryIdL123
CategoryIdL217009
CategoryIdL34524
CategoryL1Electrical Supplies
CategoryL2Industrial Control & Automation
CategoryL3Electrical Relays
CategoryL4General Purpose Relays
DimensionUnitmm
GraingerSku, MPNKUP-11AT5-240
Extra Product NameKUP-11AT5-240=KU
UPCNone
WeightUnitlbs
height57.1
height_AttribHeight
jsonUrlData924526ffbdad25e5923b
length38.6
length_AttribLength
moq, multiple4
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG100947219
tierMinQty11
tierPrice191.96
urlhttps://www.zoro.com/potter-brumfield-kup-11at5-240ku-kup-11at5-240/i/G100947219/
width34.9
width_AttribWidth
Length38.6 mm [ 1.52 in ]
Width34.9 mm [ 1.374 in ]
Height57.1 mm [ 2.248 in ]
Contact MaterialAgCdO
Insulation Initial Dielectric Between Contacts and Coil (Vrms), Insulation Initial Dielectric Between Adjacent Contacts (Vrms)2200
Environmental Ambient Temperature (Max)55 ?C [ 131 ?F ]
Contact Limiting Making Current (A), Contact Limiting Continuous Current (A), Contact Limiting Short-Time Current (A), Contact Current Rating (A)10
Contact Number of Poles2
Mounting TypeFlange Mount, Panel Mount
Contact Arrangement2 Form C (CO)
Coil Special FeaturesUL Coil Insulation Class B
Insulation Initial Resistance (M?)100000
Contact Switching Load (Min)300mA @ 12V
Coil Power Rating (AC) (VA)3
Insulation Initial Dielectric Between Coil/Contact Class1500 V to 2500 VA
Relay TypeKUP Series Panel Plug-In Relay
Contact Voltage Rating (VAC), Coil Voltage Rating (VAC)240
Coil Magnetic SystemMonostable, AC
Product TypeRelay

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG100947219441 @ $91.96
