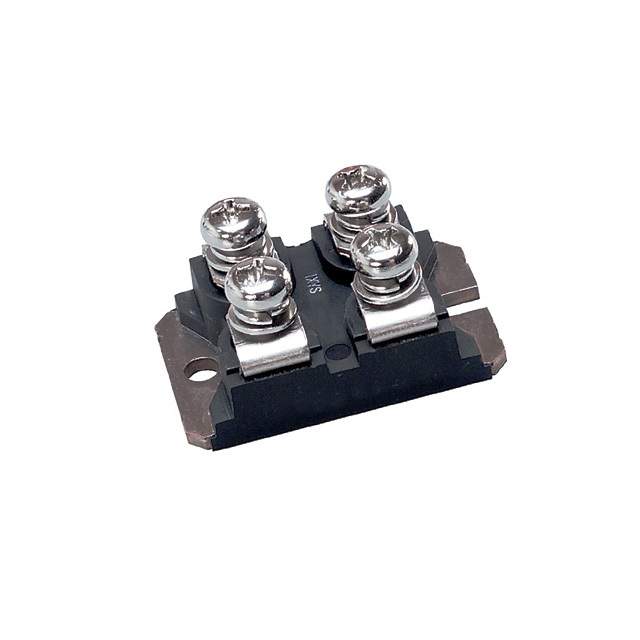

Littelfuse . IXFN82N60P
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Littelfuse |
|---|---|
| moq, multiple | 1 |
| MPN, SKU, Manufacturer Part Number | IXFN82N60P |
| qtyInStock | 690 |
| Current - Continuous Drain (Id) @ 25?C | 72A (Tc) |
| Drain to Source Voltage (Vdss) | 600V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 240nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 23000pF @ 25V |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Standard Lead Time | 21 Weeks |
| Mounting Type | Chassis Mount |
| Operating Temperature | -55 |
| Package / Case | SOT-227-4, miniBLOC |
| Packaging | Tube |
| Power Dissipation (Max) | 1040W (Tc) |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 41A, 10V |
| Series | PolarHV |
| Standard Package | 10 |
| Supplier Device Package | SOT-227B |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| iodParts | IXFN82N60P | 1 | 690 | 1 |
