Falcon

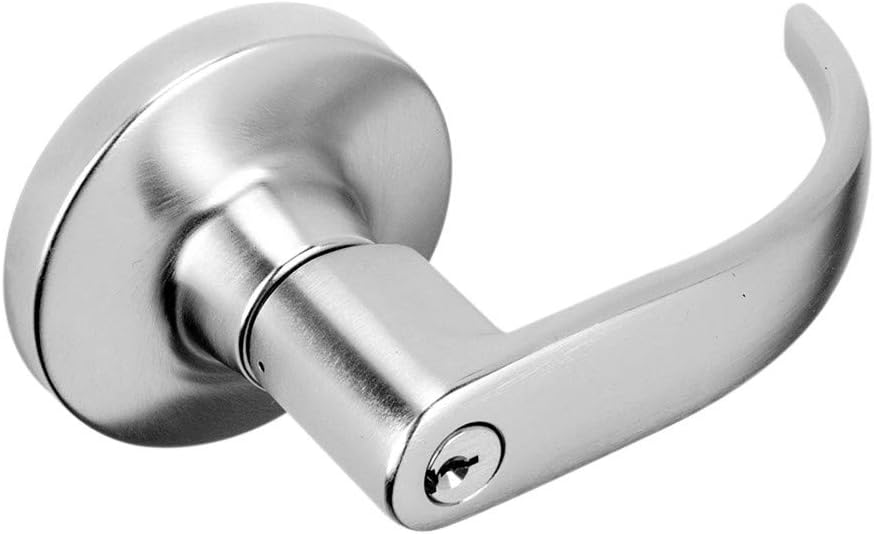

Falcon W-Series Commercial Lockset Applications - For offices, schools, hospitals, apartments, hotels, motels and other public buildings. Features for this commercial lever: 2 Lever designs, 10 functions and 5 finishes: Bright Brass, Satin Brass, Oil Rubbed Bronze, Bright Chrome, Satin Chrome UL/cUL Listed for three-hour A label doors Meets ADA requirements Nonhanded chassis, with optional thru-bolting Schlage C master keyed Falcon keyways master keyed SFIC master keyed Specification for this Commerial Lever: Door thickness 1 3/8“ to 1/34“ standard Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel. Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly Handing: Locks are non-handed. Cylinders: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard. Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent. Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders. Trim: Roses are 3-5/8” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts. Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backse
