IXYB82N120C3H1 IXYS | Discrete Semiconductor Products | DigiKey
IXYS IXYB82N120C3H1 | Transistor: IGBT; GenX3?; 1.2kV; 82A; 1.04kW; PLUS264

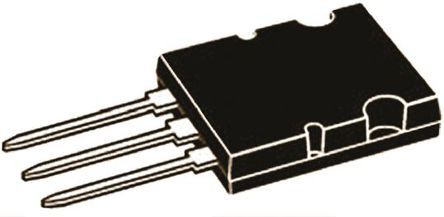

Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXYB82N120C3H1 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | IXYB82N120C3H1 |
| qtyInStock | 0 |
| SKU | IXYB82N120C3H1-ND |
| Part Status | Active |
| IGBT Type | - |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 82A |
| Switching Energy | 4.95mJ (on), 2.78mJ (off) |
| Input Type | Standard |
| Td (on/off) @ 25?C | 29ns/192ns |
| Test Condition | 600V, 80A, 2Ohm, 15V |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | PLUS264? |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 164 A |
| Current - Collector Pulsed (Icm) | 320 A |
| Power - Max | 1040 W |
| Gate Charge | 215 nC |
| Reverse Recovery Time (trr) | 420 ns |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXYB82N120C3H1-ND | 1 | 1 | ||
| 920-1003 | 25 | 25 | 25 @ $17.39 | ||
| IXYB82N120C3H1 | 1 | 36 | 1 | 1 @ $32.60, 3 @ $29.32, 10 @ $25.93, 25 @ $23.28 | |
| Digi-Key | 2720683 | 500 | 24 | 500 | 1 @ $29.05, 10 @ $26.80, 100 @ $22.88, 500 @ $21.30 |
| RS Delivers | 808-0237 | 1 | 1 |
