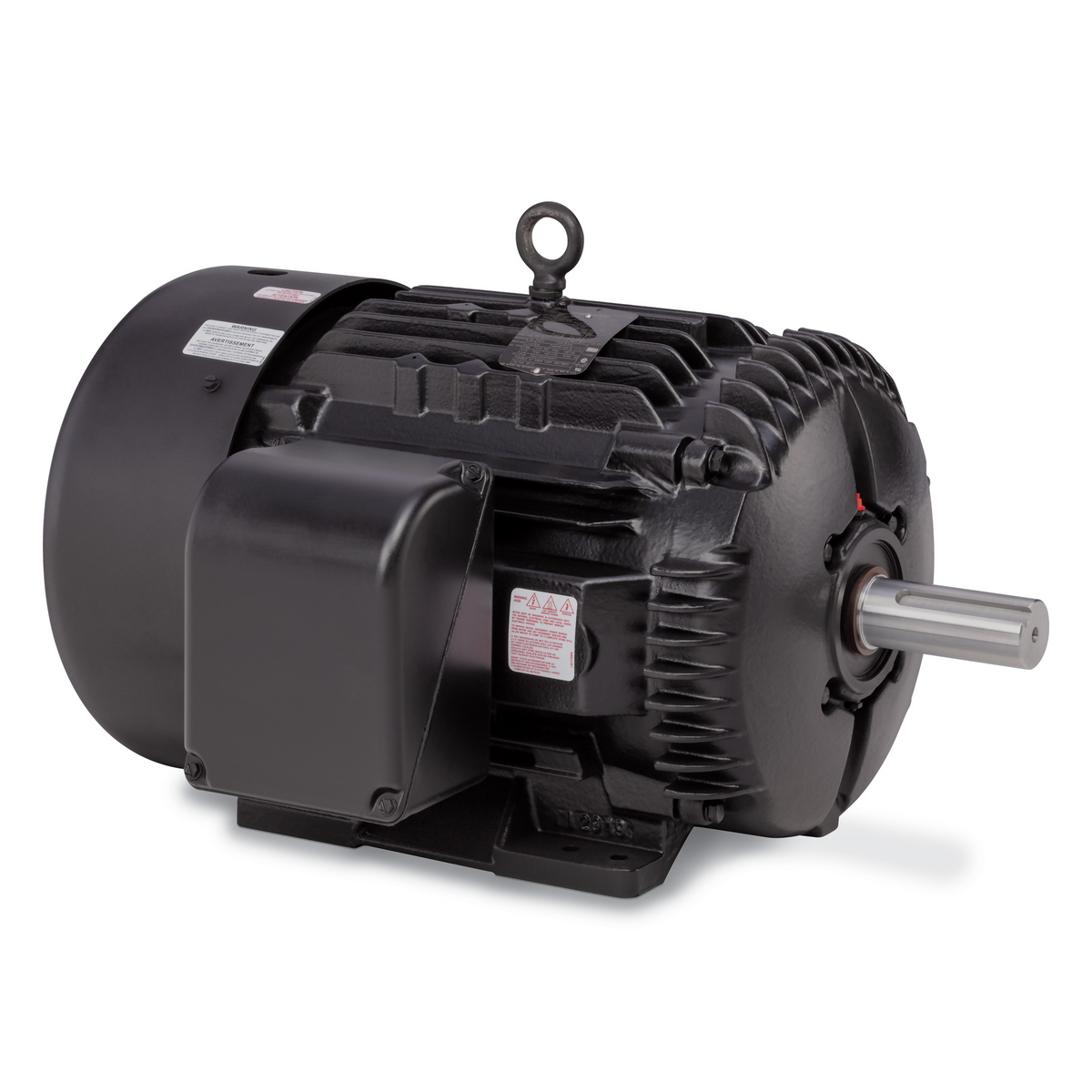

Baldor XT3302TS Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 30RPM: 3525Volts: 230/460Amps: 76/68/34Hz: 60Phase: 3Frame: 286TSEnclosure Material: IronMounting: RigidShaft Diameter: 1.625"Overall Length: 26.39"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 91.7%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cycle: Co
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor XT3302TS Three Phase Severe Duty XT Motor |
| Voltage, Volts | 230/460 |
| Weight | 411 |
| WeightUnit | lbs |
| diameter, height, width | 1.625 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 26.39 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | XT3302TS |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 4125.22 |
| Product Type | Three Phase |
| HP | 30 |
| RPM | 3525 |
| Amps | 76/68/34 |
| Hz | 60 |
| Phase | 3 |
| Frame | 286TS |
| Enclosure Material | Iron |
| Mounting | Rigid |
| Shaft Diameter | 1.625" |
| Overall Length | 26.39" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 91.7% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 10-0000-1846 |
| Ship Weight | 411 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| XT3302TS | 1 | -2 | 1 | 1 @ $4125.22 |
