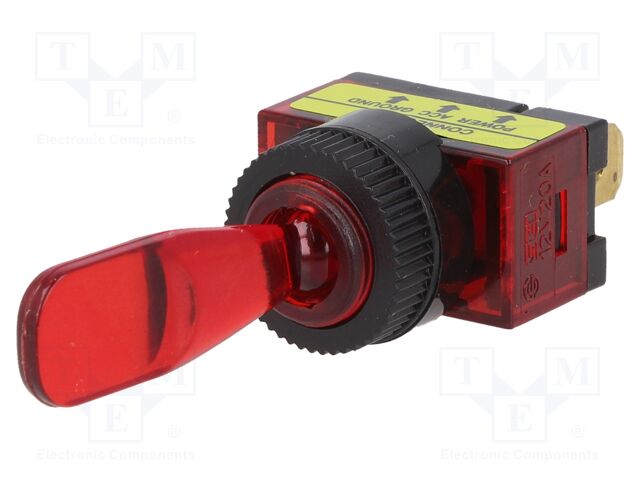

SCI R13-61B-01 | Switch: toggle; Pos: 2; SPST; ON-OFF; 20A/12VDC; Toggle: flat; 50m?
SCI R13-61B-01 | Switch: toggle; Pos: 2; SPST; ON-OFF; 20A/12VDC; Toggle: flat; 50m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Toggle Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-61B-01 | Switch: toggle; Pos: 2; SPST; ON-OFF; 20A/12VDC; Toggle: flat; 50m? |
| atoms, moq, multiple | 1 |
| diameter, length, width | 12.2 |
| height | 27.7 |
| height_Attrib | Knob height |
| jsonUrlData | a16e1da7df9856e4adf3e52279e2d314. |
| jsonUrlData2 | 3096b2ff2b6edf91281b |
| keywords | SCI, R13-61B-01 |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN, SKU | R13-61B-01 |
| qtyInStock | 193 |
| snippet | SCI R13-61B-01 | Switch: toggle; Pos: 2; SPST; ON-OFF; 20A/12VDC; Toggle: flat; 50m |
| Type of switch | toggle |
| Number of positions, Stable positions number | 2 |
| Contacts configuration | SPST |
| Switching method | ON-OFF |
| DC contacts rating @R | 20A / 12V DC |
| Leads | connectors 6,3x0,8mm |
| Terminals plating | nickel |
| Kind of toggle | flat |
| Mounting hole diameter | ?12.2mm |
| Knob height | 27.7mm |
| Max contact resistance: | 50m? |
| Body dimensions | 24.4x14x18.7mm |
| Actuator material | plastic |
| Related items | R1710A |
| Panel thickness | max. 2mm |
| Test voltage | 1.5kV |
| Lever colour, Backlight colour | red |
| Illumination | neon lamp |
| Manufacturer series | R13-61 |
