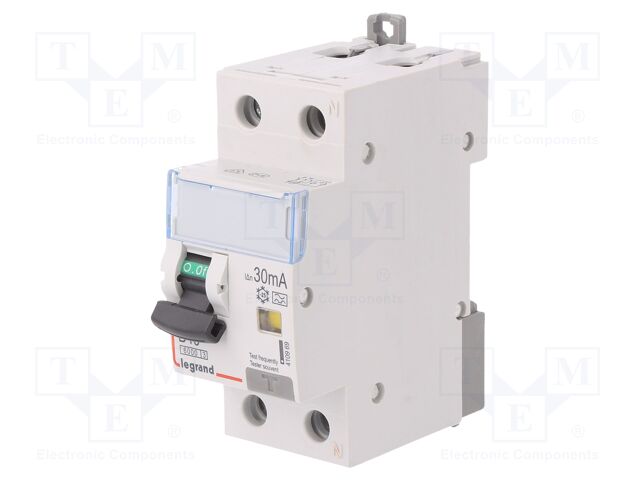

LEGRAND P 312B40-30-A DX | RCBO breaker; Inom: 40A; Ires: 30mA; Max surge current: 250A; IP20
LEGRAND P 312B40-30-A DX | RCBO breaker; Inom: 40A; Ires: 30mA; Max surge current: 250A; IP2
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | LEGRAND |
|---|---|
| CategoryL1 | Fuses and Circuit Breakers |
| CategoryL2 | Circuit Breakers |
| CategoryL3 | RCD Circuit Breakers |
| Extra Product Name | LEGRAND P 312B40-30-A DX | RCBO breaker; Inom: 40A; Ires: 30mA; Max surge current: 250A; IP20 |
| atoms, moq, multiple | 1 |
| jsonUrlData | 4948088714771874a1091adb2f51d2b5. |
| jsonUrlData2 | ff6b0b260f647c8d2872 |
| keywords | LEGRAND, P 312B40-30-A DX, 410969, Fuses and Circuit Breakers, Circuit Breakers, RCD Circuit Breakers |
| MPN | P 312B40-30-A DX |
| qtyInStock | 0 |
| SKU | 410969 |
| snippet | LEGRAND P 312B40-30-A DX | RCBO breaker; Inom: 40A; Ires: 30mA; Max surge current: 250A; IP2 |
| Type of protection | RCBO breaker |
| Kind of circuit breaker | type A |
| Current rating | 40A |
| Residual current | 30mA |
| Max surge current | 250A |
| Number of poles | 2 |
| Rated voltage | 400V AC |
| Mounting | for DIN rail mounting |
| IP rating | IP20 |
| Cross section of connecting wires | 0.75...50mm |
| Operating temperature | -25...60?C |
| Short circuit breaking capacity | 6kA |
| Mechanical durability | 20000 cycles |
| Electrical life | 10000 cycles |
| Characteristics | B |
| Manufacturer series | P310 DX |
| Conform to the norm | IEC EN 61009-1 |
| Trade name | RCBO |
