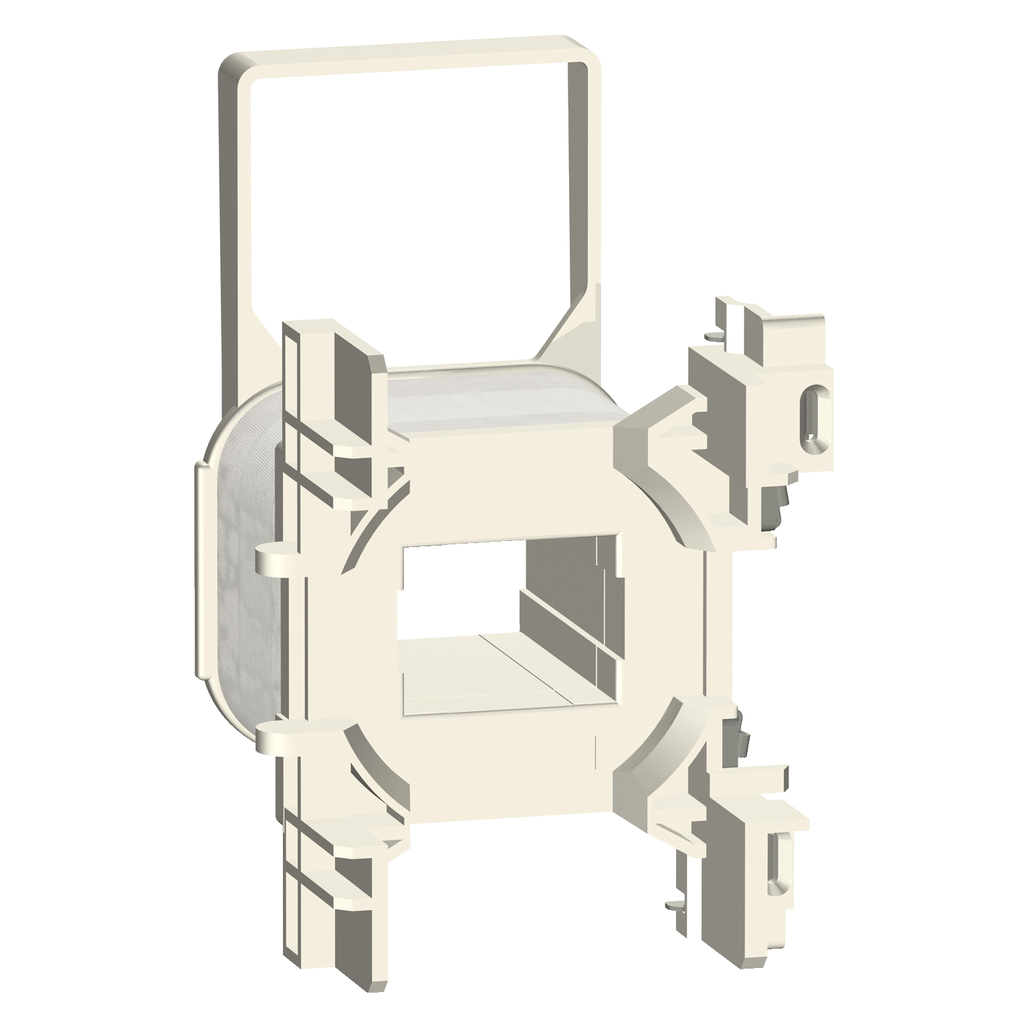

Contactor coil, TeSys Deca, LXD3, 24V AC 50/60Hz for 40?65A contactor | Mayer Electric

Shop SCHNEIDER ELECTRIC at Mayer. TeSys D - contactor coil - LXD3 - 24 V AC 50/60 Hz for 40? 65 A contactor

Mayer Electric Supply . LXD3B7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameContactor coil, TeSys Deca, LXD3, 24V AC 50/60Hz for 40?65A contactor | Mayer Electric
UPC3389119410304
Weight0.07
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-D-contactor-coil-LXD3-24-V-AC-50-60-Hz-for-40-65-A-contactor-785901811046
jsonUrlData218b06f3b-5e39-448a-9f5d-abd200627817
keywordsSQUARE D, Mayer SQUARE D, 785901811046, LXD3B7
moq, multiple, tierMinQty11
MPNLXD3B7
qtyInStock0
SKUSQDLXD3B7
snippetShop SCHNEIDER ELECTRIC at Mayer. TeSys D - contactor coil - LXD3 - 24 V AC 50/60 Hz for 40? 65 A contactor
tierPrice158.66
Net Weight0.07 kg
Ambient Air Temperature For Operation-5-60 ?C
Warranty18 months
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Mercury Free, Reach Free Of Svhc, Pvc Free, Rohs Exemption Information, Toxic Heavy Metal FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Hold-In Power Consumption In Va15-15 VA 60 Hz 0.3 20 ?C) || 15-15 VA 50 Hz 0.3 20 ?C)
Coil Technologywithout built-in suppressor module
Inrush Power In Va160-160 VA 60 Hz 0.75 20 ?C) || 160-160 VA 50 Hz 0.75 20 ?C)
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 60 ?C) || operational 0.8...1.1 Uc 50 Hz 60 ?C) || operational 0.85...1.1 Uc 60 Hz 60 ?C)
Heat Dissipation4-5 W 50/60 Hz
Product CompatibilityLC1DT60A || LC1D40A...D65A || LC1DT80A
RangeTeSys
Inductance Of Closed Circuit0.12 H
Control Circuit TypeAC 50/60 Hz
Device Short NameLXD3
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability6 Mcycles
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Product Or Component Typecontactor coil
Average Resistance1.98 Ohm 20 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLXD3B7111 @ $58.66
