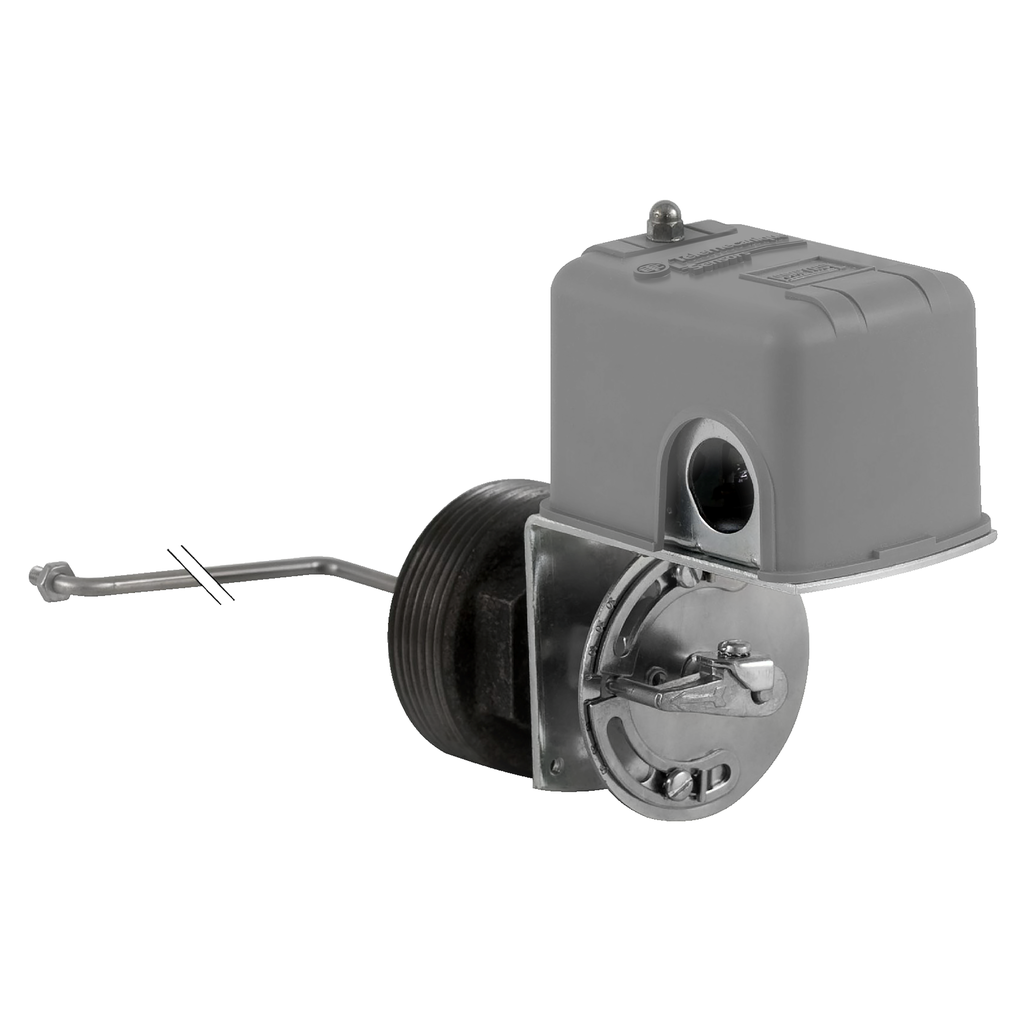

Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2NC DPST DB contacts | Mayer Electric

Shop SQUARE D at Mayer. Closed tank - NEMA 1 - screw-in bushing - 2 NC DPST-DB contacts

Mayer Electric Supply . 9037HG32Z20

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameFloat switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2NC DPST DB contacts | Mayer Electric
UPCT785901302841
Weight4.77
WeightUnitlbs
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-Closed-tank-NEMA-1-screw-in-bushing-2-NC-DPST-DB-contacts-785901302841
jsonUrlData2b4bf24e3-b9fe-4610-a022-abd20061a382
keywordsSQUARE D, Mayer SQUARE D, 785901302841, 9037HG32Z20
moq, multiple, tierMinQty11
MPN9037HG32Z20
qtyInStock0
SKUSQD9037HG32Z20
snippetShop SQUARE D at Mayer. Closed tank - NEMA 1 - screw-in bushing - 2 NC DPST-DB contacts
tierPrice1162.19
Range Of ProductSquare D Pumptrol
Product Specific Applicationliquid level control
Quantity Per Setset of 1
Electrical Circuit Typepower circuit
Product Or Component Typefloat switch
Type Of Packingindividual
Device Applicationclosed tank
Device Short Name9037H
Warranty18 months
Cable Entry Number3 knock-outs for 1/2" conduit UL 508
Electrical Connectionscrew-clamp terminals 10 AWG
Contact Operationcontacts close on liquid rise
Product Destinationfor closed tank
Terminal Block Type4 terminals
Terminals Description Iso N?1line-load-load-line
[Ui] Rated Insulation Voltage575 V UL 508
Short-Circuit Protection20 A cartridge fuse gG
Device Mountingscrew-in bushing
Mechanical Durability300 cycles
Float Rod Angle90? (offset)
Factory Modificationwithout
Float Movement6...11.5 in adjustable
Operating Positionvertical position only
Enclosure Materialpolypropylene or equivalent
Maximum Operating Rate60 cyc/mn
Local Signallingwith external pointer
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Materials In Contact With Fluidstainless steel 316 || cast iron || stainlesss steel 304 || viton || yellow brass
Float Positionleft
Net Weight4.77 lb(US)
Kit Compositionfloat || rod || float switch
Electrical Durability100 cycles 60 cyc/mn
Circularity ProfileENVEOLI111210EN
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product CertificationsUL listed file E12158 || CSA file LR25490
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-22-220 ?F
StandardsCE || UL 508
Nema Degree Of ProtectionNEMA 1 UL 50

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9037HG32Z20111 @ $162.19
