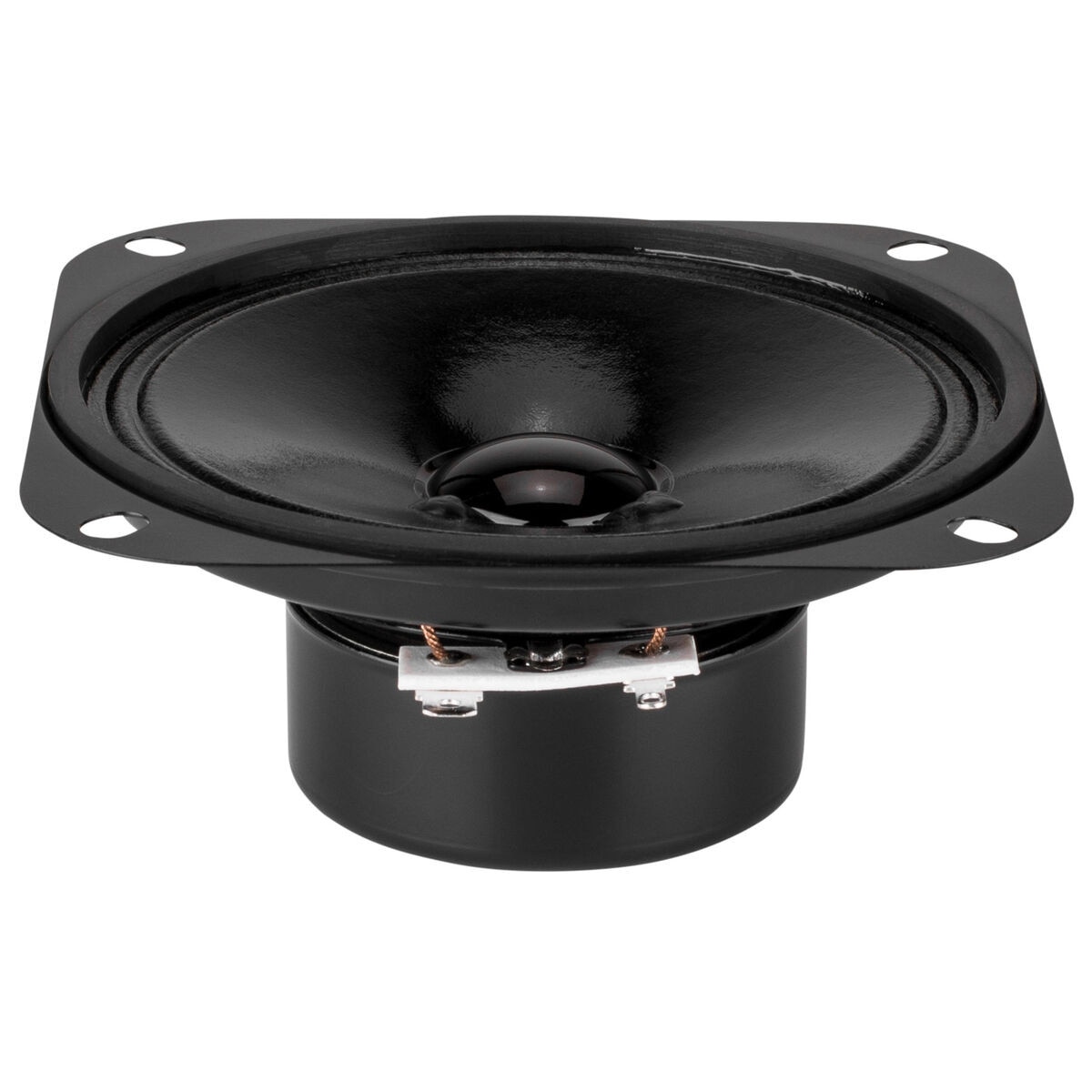

Visaton R10SC-4 4" Full-Range Speaker 4 Ohm

Visaton R10SC-4 4" Full-Range Speaker 4 Ohm. Part Number: 292-602 by Visaton.

Visaton . R10SC-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton R10SC-4 4" Full-Range Speaker 4 Ohm
Weight0.6
WeightUnitlbs
depth, length1.73
diameter, height, width4.02
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelR10SC-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number292-602
snippetVisaton R10SC-4 4" Full-Range Speaker 4 Ohm. Part Number: 292-602 by Visaton.
tierMinQty210
tierMinQty325
tierPrice111.71
tierPrice211.36
tierPrice310.87
Unit of MeasureEach
Nominal Diameter4"
Bolt Circle Diameter4.6
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance4?
Frequency Response100 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.59"
Resonant Frequency (Fs)165Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.95mH
Mechanical Q (Qms)6.4
Electromagnetic Q (Qes)1.67
Total Q (Qts)1.32
Compliance Equivalent Volume (Vas)0.092ft?
BL Product (BL)2T?m
Diaphragm Mass Inc Airload (Mms)1.9g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)56cm?
Cone Material, Surround MaterialTreated Paper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside DiameterAcross the flats 4.02"
Baffle Cutout Diameter3.66"
Depth1.73"
# Mounting Holes4
Sealed Volume0.1ft?
Sealed F3161.4Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com292-6021-211 @ $11.71, 10 @ $11.36, 25 @ $10.87
