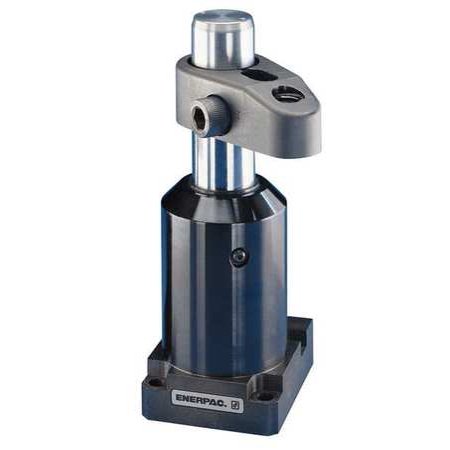

Hydraulic Cylinder, Type Swing, Material of Construction Steel, Body Style Lower Flange, Function Double Acting, Turns Right, Swing Angle 90 Degree, Clamping Force 4200 lb., Stroke 1.16 In, Port Size 0.4375-20 UNF-2B, Effective Area Clamped 1.1 sq. in., Effective Area Unclamped 2.35 sq. in., Oil Capacity Clamped 1.22 cu. in., Oil Capacity Unclamped 2.6 cu. in., Max. Oil Flow 140 cu. in./min., Pressure Range 0 to 5000 psi, Extended Height 6.88 In, Outside Dia. 3.35 In, Mounting Hole Dia. 2.48 In Features Includes: Manifold or Threaded Port Connection Item: Hydraulic Cylinder Material of Construction: Steel Outside Dia.: 3.35" Type: Swing Body Style: Lower Flange Function: Double Acting Mounting Thread: 0.312"-24 Pressure Range: 0 to 5000 psi Stroke: 1.16" Number of Bolts: 4 Port Size: 0.4375-20 UNF-2B Turns: Right Bolt Size: 5/16"-24 Min. Hole Depth: 0.67" Mounting Hole Dia.: 2.48" Swing Angle: 90 deg. Max. Oil Flow: 140 cu. in./min. Effective Area Clamped: 1.1 sq. in. Effective Area Unclamped: 2.35 sq. in. Oil Capacity Clamped: 1.22 cu. in. Oil Capacity Unclamped: 2.6 cu. in. Extended Height: 6.88" Clamping Force: 4200 lb.

Hydraulic Cylinder, Type Swing, Material of Construction Steel, Body Style Lower Flange, Function Double Acting, Turns Right, Swing Angle 90 Degree, Clamping Force 4200 lb., Stroke 1.16 In, Port Size 0.4375-20 UNF-2B, Effective Area Clamped 1.1 sq. in., Effective Area Unclamped 2.35 sq. in., Oil Capacity Clamped 1.22 cu. in., Oil Capacity Unclamped 2.6 cu. in., Max. Oil Flow 140 cu. in./min., Pressure Range 0 to 5000 psi, Extended Height 6.88 In, Outside Dia. 3.35 In, Mounting Hole Dia. 2.48 In Features Includes: Manifold or Threaded Port Connection <
