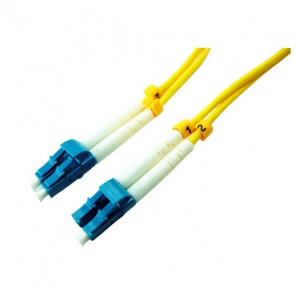

Buy Comprehensive Connectivity LC-LC-SMP-100M, LC Duplex Plenum Patch Cable, 100m - Prime Buy

Comprehensive Connectivity . LC-LC-SMP-100M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerComprehensive Connectivity
ConditionNEWCONDITION
Extra Product NameBuy Comprehensive Connectivity LC-LC-SMP-100M, LC Duplex Plenum Patch Cable, 100m - Prime Buy
Weight, Weight, Lbs3
WeightUnitlbs
Weight_AttribWeight, Lbs
moq, multiple, tierMinQty11
MPN, SKULC-LC-SMP-100M
qtyInStock-2
qtySourceFieldMap
tierPrice1237.30
Connector 1, Connector 2LC Male
LC Connector Dimensions4.5mm Height x 4.5mm Width x 50mm Depth
Maximum Connector Loss0.50 dB
Typical Connector Loss0.20 dB
Typical Return Loss-50 dB
Buffer MaterialPVC
Buffer OD900 um
Jacket MaterialPlenum (OFNP rated)
Jacket OD3.0 mm
Installation Tensile Load100 N (445 lbs)
Long-Term Tensile Load50 N (222 lbs)
Maximum Tensile Load100 N/cm
Installation (Loaded) Minimum Bend Radius5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius3.0cm (1.2in)
Crush Resistance750 N/cm
Impact Resistance1, 000 cycles
Flex Resistance5, 000 cycles
Attenuation at 1550 nm0.25 dB/km
Attenuation at 1310 nm0.35 dB/km
Operating Temperature-20C to +80C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.comLC-LC-SMP-100M1-211 @ $237.30
