Timken

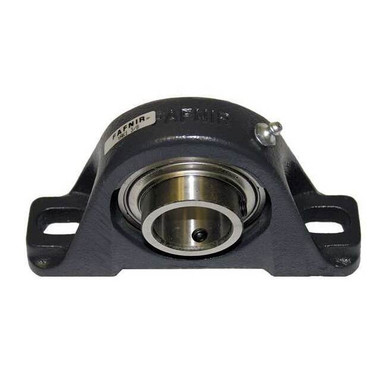

TIMKEN YAK 3/4 SGT Ball Pillow Block Housed Unit - MROSupply.com

Timken . YAK 3/4 SGT

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTimken
DimensionUnitinch
GraingerSku46R624
UPC087796157453
UnitOfMeasureEA
Weight1.55
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height, Number of Bolts, Number of Mount Holes2
jsonUrlData924526ffbdad25e5923b
length5.8
moq, multiple, tierMinQty11
MPNYAK 3/4 SGT
qtyInStock9
qtyInStockOverride-2
SKUG8106524
tierPrice196.10
urlhttps://www.zoro.com/timken-pillow-block-bearing-ball-34-bore-yak-34-sgt/i/G8106524/
width3.2
Bearing Insert TypeBall
Bore Dia, Bore Diameter3/4 in
Shaft Locking TypeSet Screws
Bearing Housing Material TypeCast Iron
Bearing Insert Material52100 Chrome Steel
Bolt Hole Center-to-Center3 25/32 in
Mounting Surface to Shaft Center, Dimension B, Dimension H1 1/4 in
SeriesYAK
Overall Length, Dimension L5 in
Finish, Housing Material FinishPowder Coated
Dimension A1 5/16 in
Dimension H117/32 in
ItemPillow Block Bearing
Overall Height2 15/32 in
Dimension F1 5/64 in
Bearing LubricationMobil Polyrex EM or NLGI #2 Equivalent
Static Load Capacity1,400 lb
Housing MaterialCast iron
Dynamic Load Capacity3,200 lb
Dimension H22 17/32 in
Locking TypeSet Screw
Temp Range-65 Degrees to 200 Degrees F
Overall Width1 11/32 in
Dimension J3 51/64 in
Bolt Size, Mounting Bolt Size3/8 in
Dimension E1 13/32 ft
Mount TypeBolt-Through
Bore TypeCylindrical
Inner Ring Width1.252 in
Bearing Material Grade52100
ClosureDouble Sealed
Mount Hole Center-to-Center Length3.795 in
Center Height1.25 in
ApplicationIndustrial
Static Radial Load Capacity1,460 lbf
Dynamic Radial Load Capacity3,190 lbf
System of MeasurementInch
Resistance PropertiesCorrosion Resistant
Maximum Temperature200 Degrees F
Load DirectionRadial, Thrust
Mount Hole Size0.795 in x 0.437 in
FeaturesBase-To-Center Line Height Indicator, Easy Access to Mounting Bolts, Set Screw Access, Solid, Flat Feet
Seal TypeContact
Base Height0.531 in
Minimum Temperature-65 Degrees F
Lubricant MaterialNGLI #2 Equivalent
Country of Origin (subject to change)Multiple

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG81065241911 @ $96.10
Grainger46R624111 @ $133.47
MRO Supply5113894111 @ $69.33
Summit RacingTMK-YAK34SGT11
BDI ExpressYAK 3/4 SGT1211 @ $62.97
FinditParts1599601111 @ $87.80
sustainablesupply.comC15724331-211 @ $115.44
PurvisYAK 3/4 SGT1-211 @ $82.51
simsupply.comCU-3436523632341111 @ $129.30
turtle.comTK YAK 3/4 SGT1-211 @ $0.00
cbtcompany.comYAK 3/4 SGT11
simsupply.comZO-G81065241411 @ $111.58
apexindustrialautomation.comYAK 3/4 SGT11211 @ $79.20
