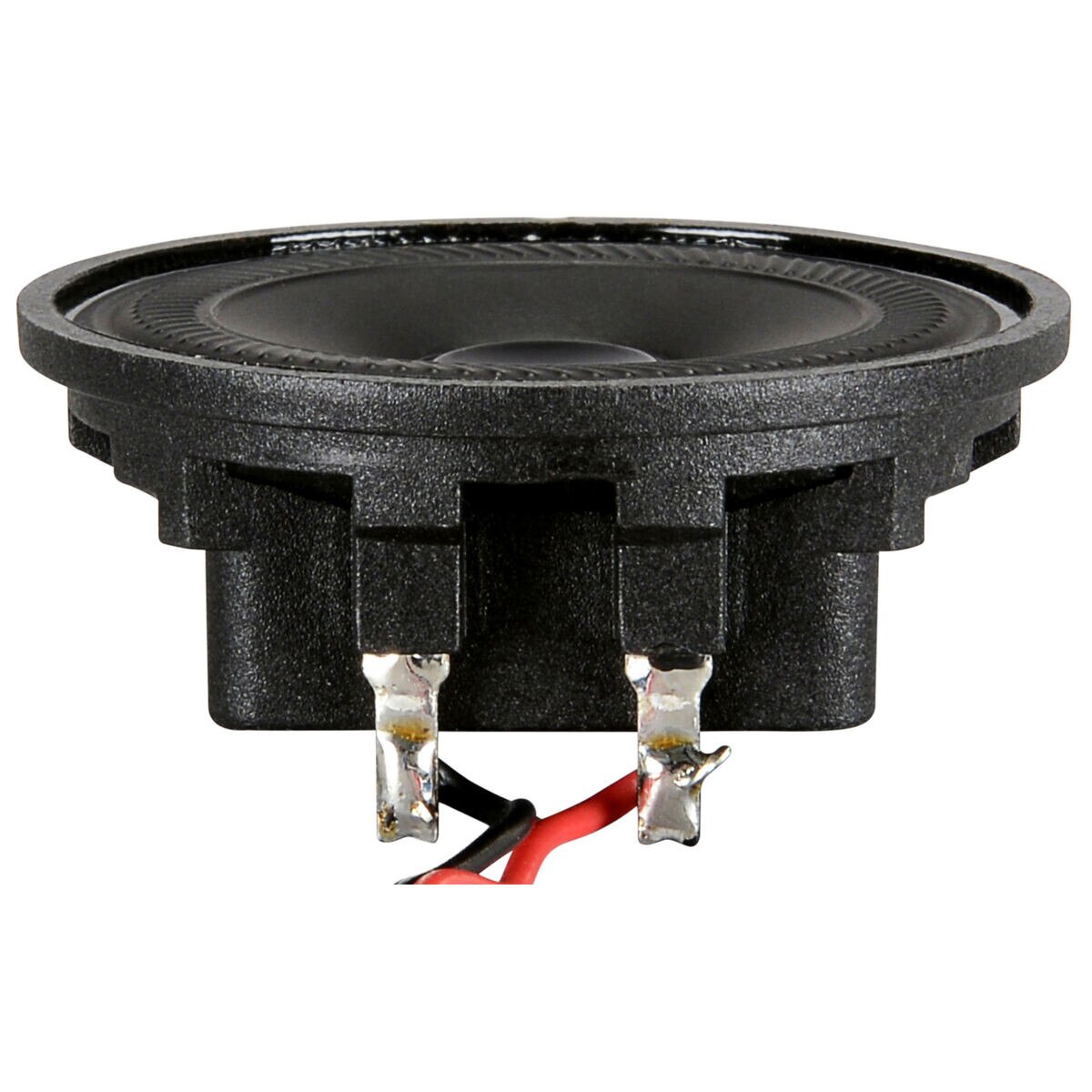

2" Full Range Speaker 25 Ohm
2" Full Range Speaker 25 Ohm. Part Number: 299-009 by Factory Buyouts.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Factory Buyouts |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | 2" Full Range Speaker 25 Ohm |
| UPC | 848864013848 |
| Weight | 0.1 |
| WeightUnit | lbs |
| depth, length | 0.63 |
| diameter, height, width | 2.0 |
| height_Attrib, width_Attrib | Nominal Diameter |
| length_Attrib | Depth |
| moq, multiple | 1 |
| MPN, Model | P0050025FM19BAR |
| qtyInStock | 0 |
| SKU, Part Number | 299-009 |
| snippet | 2" Full Range Speaker 25 Ohm. Part Number: 299-009 by Factory Buyouts. |
| Unit of Measure | Each |
| Nominal Diameter | 2" |
| Power Handling (RMS) | 0.5 Watts |
| Power Handling (MAX) | 1 Watts |
| Impedance | 24? |
| Frequency Response | 500 to 3,000Hz |
| Sensitivity | 83dB 2.83V/1m |
| Voice Coil Diameter | 0.39" |
| Resonant Frequency (Fs) | 291Hz |
| DC Resistance (Re) | 19? |
| Voice Coil Inductance (Le) | 0.96mH |
| Mechanical Q (Qms) | 7.83 |
| Electromagnetic Q (Qes) | 1.88 |
| Total Q (Qts) | 1.52 |
| Cone Material | Poly |
| Basket / Frame Material | Polymer |
| Overall Outside Diameter | 1.97" |
| Baffle Cutout Diameter | 1.83" |
| Depth | 0.63" |
