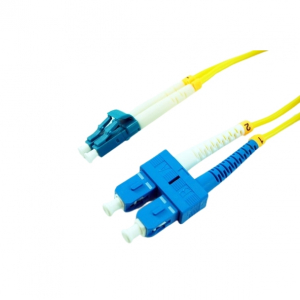

Buy Comprehensive Connectivity LC-SC-SMP-30M, Duplex Plenum Patch Cable, 30m - Prime Buy

Comprehensive Connectivity . LC-SC-SMP-30M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerComprehensive Connectivity
ConditionNEWCONDITION
Extra Product NameBuy Comprehensive Connectivity LC-SC-SMP-30M, Duplex Plenum Patch Cable, 30m - Prime Buy
Weight, Weight, Lbs2.2
WeightUnitlbs
Weight_AttribWeight, Lbs
moq, multiple, tierMinQty11
MPN, SKULC-SC-SMP-30M
qtyInStock-2
qtySourceFieldMap
tierPrice1142.80
Connector 1LC Male
Connector 2SC Male
LC Connector Dimensions4.5mm Height x 4.5mm Width x 50mm Depth
SC Connector Dimensions7.3mm Height x 8.9mm Width x 55mm Depth
Maximum Connector Loss0.50 dB
Typical Connector Loss0.20 dB
Typical Return Loss-50 dB
Buffer MaterialPVC
Buffer OD900 um
Jacket MaterialPlenum (OFNP rated)
Jacket OD3.0 mm
Installation Tensile Load100 N (445 lbs)
Long-Term Tensile Load50 N (222 lbs)
Maximum Tensile Load100 N/cm
Installation (Loaded) Minimum Bend Radius5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius3.0cm (1.2in)
Crush Resistance750 N/cm
Impact Resistance1, 000 cycles
Flex Resistance5, 000 cycles
Attenuation at 1550 nm0.25 dB/km
Attenuation at 1310 nm0.35 dB/km
Operating Temperature-20C to +80C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.comLC-SC-SMP-30M1-211 @ $142.80
