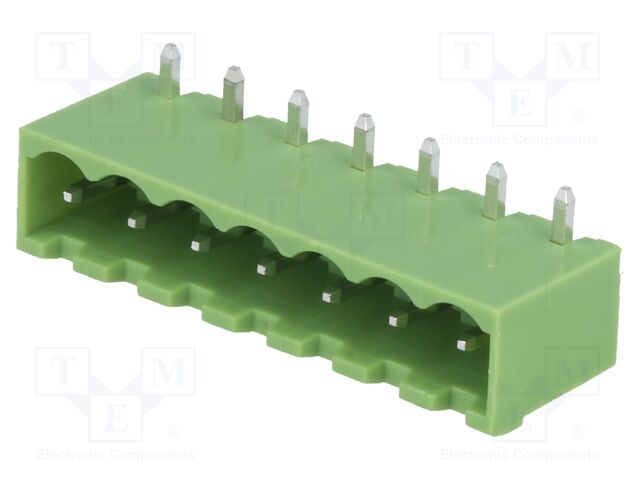

XINYA XY2500R-B(5.0)-7P | Pluggable terminal block; Contacts ph: 5mm; ways: 7; angled 90?
XINYA XY2500R-B(5.0)-7P | Pluggable terminal block; Contacts ph: 5mm; ways: 7; angled 90
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500R-B(5.0)-7P | Pluggable terminal block; Contacts ph: 5mm; ways: 7; angled 90? |
| atoms | 1 |
| height | 8.4 |
| height_Attrib | Height |
| jsonUrlData | 776f64e5d87883d0c1212dd96c7fee38. |
| jsonUrlData2 | 3a90bf9bf0162c1f0516 |
| keywords | XINYA, XY2500R-B(5.0)-7P, TBG-5.0-KW-7P |
| moq, multiple, tierMinQty1 | 5 |
| MPN | XY2500R-B(5.0)-7P |
| qtyInStock | 1931 |
| SKU | TBG-5.0-KW-7P |
| snippet | XINYA XY2500R-B(5.0)-7P | Pluggable terminal block; Contacts ph: 5mm; ways: 7; angled 90 |
| tierMinQty2 | 25 |
| tierMinQty3 | 100 |
| tierMinQty4 | 600 |
| tierMinQty5 | 1800 |
| tierPrice1 | 0.342 |
| tierPrice2 | 0.282 |
| tierPrice3 | 0.254 |
| tierPrice4 | 0.239 |
| tierPrice5 | 0.209 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5mm |
| Number of ways, Number of pins | 7 |
| Spatial orientation | angled 90? |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x7 |
| Current rating | 15A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Height | 8.4mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5.0-KW-7P | 5 | 1931 | 5 | 5 @ $0.34, 25 @ $0.28, 100 @ $0.25, 600 @ $0.24, 1800 @ $0.21 |
